- mpnWD34S2ACR
- brandname: U.S. Motors
- manufacturername: U.S. Motors

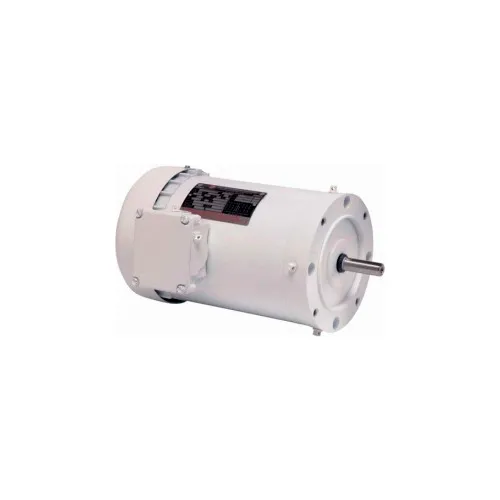

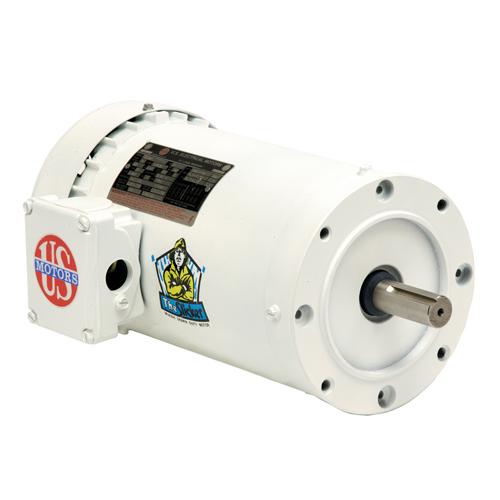

U.S. Motors US Motors Washdown, 3 Phase, 3/4 HP, 3-Phase, 1725 RPM Motor, WD34S2ACR
- Brand: US Motors
- PartNumber: WD34S2ACR
- PackageQuantity: 1
- Manufacturer: U.S. Motors
- Label: U.S. Motors
Attributes
| Key | Value |
|---|
| Amps | 2.6-2.4/1.2 |
| Bearings | Ball |
| Composition | Rolled Steel |
| Construction | Rolled Steel |
| Country of Origin (subj. | Mexico |
| Drive End Flange Type | C-Face |
| Efficiency | 82.5% |
| Enclosure | Totally Enclosed Non-Ve. |
| Enclosure Type | TENV (Totally Enclosed . |
| Estimated Weight | 28.60 |
| Family Series | US Motors Motors |
| FL Amps | 2.6-2.4/1.2 |
| FL Efficiency | 82.5 |
| Frame | 56C |
| Frequency | 60 Hz |
| Gross Weight | 35.2 lbs |
| Hertz | 60 |
| Horsepower | 3/4 hp |
| HP | 3/4, 0.75 |
| Hz | 60 |
| Insulation Class | F |
| Item | Motor,3PH,3/4HP,1800,20. |
| Item Number | WD34S2ACR |
| Kilowatts | 0.6 kW |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | P063GBE4444015B |
| Manufacturer Part Number | WD34S2ACR |
| Maximum Ambient Tempera. | 40? C |
| Model Number | P063GBE4444015B |
| Mounting | Footless, Face |
| Mounting Type | C-Face |
| NEMA Frame | 56C |
| Net Weight | 0 lbs |
| Nominal Voltage | 208 VAC, 240 VAC, 480 V. |
| Number of Poles | 4 |
| Number of Speeds | 1 |
| Overload Protection | None |
| Part Number | WD34S2ACR |
| Phase | 3 |
| Product Type | Washdown Duty, Three Ph. |
| Rotation | Reversible |
| RPM | 1725, 1,725 RPM |
| Service Factor | 1.15 |
| Ship Weight | 26 lbs. |
| Speed (RPM) | 1725 |
| Voltage | 208V, 230V, 460V |
| Voltage (AC) | 208-230 VAC, 460 VAC |
| Volts | 208, 230, 460 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB465936 | 462.95 | 1 | In Stock | | US Motors | | 462.95 @ 1 |
 | emotorpro.com | WD34S2ACR | 483.68 | 1 | In Stock | | U.S. Motors | 26.0 | 483.68 @ 1 |
 | Zoro | G0404230 | 486.59 | 1 | In Stock | | U.S. Motors | 35.0 | 486.59 @ 1 |
 | National Supply Network | B465936 | 501.64 | 1 | In Stock | | US MOTORS | | 501.64 @ 1 |
 | Galco | WD34S2ACR-USM | 508.8 | 1 | In Stock | | US Motors | 35.2 | 508.8 @ 1 |
 | motorsandcontrol.com | WD34S2ACR | 508.8 | 1 | In Stock | | US Motors (Nidec) | 28.6 | 508.8 @ 1 |
 | Guardian | 76507904 | 671.42 | 1 | In Stock | | US Motors | | 671.42 @ 1 |
| motionindustries.com | 03749119 | 726.26 | 1 | In Stock | | US Motors (Nidec) | | 726.26 @ 1 |
 | bscsource.com | WD34S2ACR | 998.39 | 1 | In Stock | | US Motors | | 998.39 @ 1 |
