- mpnT32S1ACR
- brandname: US Motors
- manufacturername: US Motors

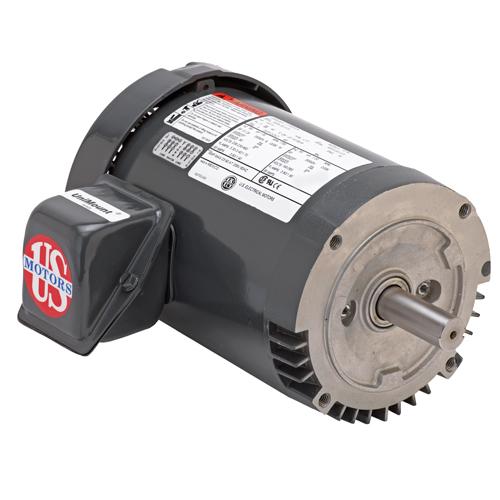

US Motors/Emerson T32S1ACR T32s1acr 1hp 3ph Tefc Motor
- PartNumber: T32S1ACR
- Manufacturer: US Motors
- Label: US Motors
Attributes
| Key | Value |
|---|
| Amps | 4.7-4.5/2.2 |
| Bearings | Ball |
| Construction | Rolled Steel |
| Drive End Flange Type | C-Face |
| Efficiency | 80% |
| Enclosure | TEFC, Totally Enclosed . |
| Enclosure Type | TEFC (Totally Enclosed . |
| Estimated Weight | 0.0000 |
| Family Series | US Motors Motors |
| FL Amps | 4.7-4.5/2.2 |
| FL Efficiency | 80 |
| Frame | 56C |
| Frequency | 60 Hz |
| Gross Weight | 32 lbs |
| Hertz | 60 |
| Horsepower | 1-1/2 hp |
| HP | 1.5, 1-1/2 |
| Hz | 60 |
| Insulation Class | B |
| Item Number | T32S1ACR |
| Kilowatts | 1.1 kW |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | P063GAG4425015B |
| Manufacturer Part Number | T32S1ACR |
| Maximum Ambient Tempera. | 40? C |
| Model Number | P063GAG4425015B |
| Mounting | Footless, Face |
| Mounting Type | C-Face |
| NEMA Frame | 56C |
| Net Weight | 0 lbs |
| Nominal Voltage | 208 VAC, 240 VAC, 480 V. |
| Number of Poles | 2 |
| Number of Speeds | 1 |
| Overload Protection | None |
| Part Number | T32S1ACR |
| Phase | 3 |
| Product Type | General Purpose, Three . |
| Replaced By | T32P1ACR |
| Rotation | Reversible |
| RPM | 3450, 3,450 RPM |
| Service Factor | 1.15 |
| Ship Weight | 27 lbs. |
| Speed (RPM) | 3450 |
| Voltage | 208V, 230V, 460V |
| Voltage (AC) | 208-230 VAC, 460 VAC |
| Volts | 208, 230, 460 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | emotorpro.com | T32S1ACR | 313.13 | 1 | In Stock | | U.S. Motors | 27.0 | 313.13 @ 1 |
 | motorsandcontrol.com | T32S1ACR | 319.84 | 1 | In Stock | | US Motors (Nidec) | | 319.84 @ 1 |
 | Galco | T32S1ACR-USM | 319.85 | 1 | In Stock | | US Motors | 32.0 | 319.85 @ 1 |
| motionindustries.com | 04193216 | 453.98 | 1 | In Stock | | US Motors (Nidec) | | 453.98 @ 1 |
 | National Supply Network | 76507631 | 552.89 | 1 | In Stock | | US MOTORS | | 552.89 @ 1 |
 | Guardian | 76507631 | 558.14 | 1 | In Stock | | US Motors | | 558.14 @ 1 |
 | bscsource.com | T32S1ACR | 607.19 | 1 | In Stock | | US Motors | | 607.19 @ 1 |
