- mpnD13B2K4A9
- brandname: US Motors (Nidec)
- manufacturername: US Motors (Nidec)

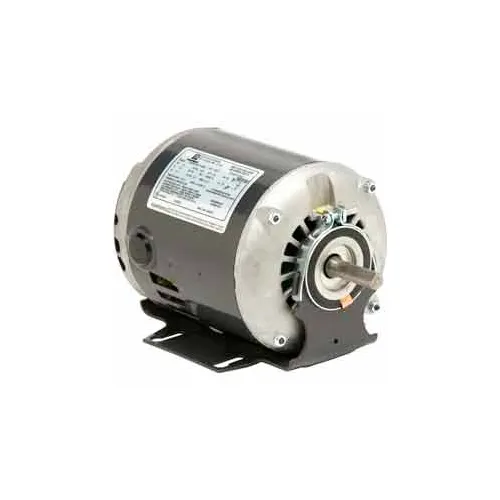

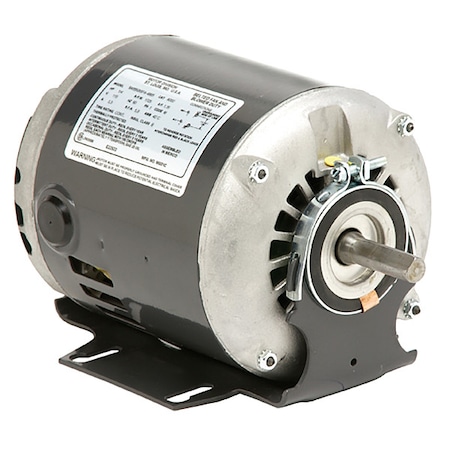

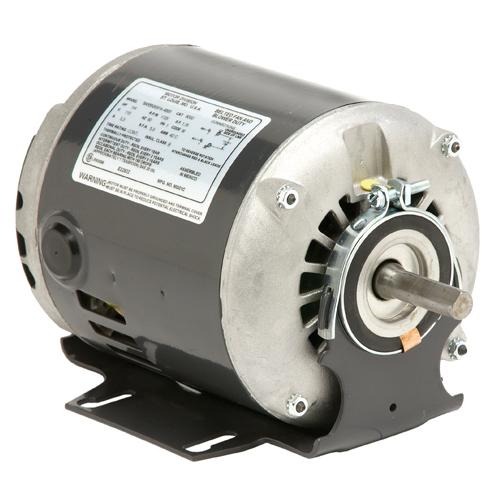

US Motors (Nidec) D13B2K4A9 - General Purpose Motor - 1 ph, 1/3 hp, 1800 rpm, 230 V, 48 Frame, ODP Enclosure, 60 Hz, HORZ-Foot Mount
- Brand: Generic
- Manufacturer: Generic
- Label: Generic
Attributes
| Key | Value |
|---|
| Amps | 3 |
| Bearings | Sleeve |
| Composition | Rolled Steel |
| Construction | Rolled Steel |
| Country of Origin (subj. | Mexico |
| Drive End Flange Type | Standard |
| Duty Cycle | Continuous |
| Efficiency | 61.5% |
| Enclosure | Open Drip Proof, Open |
| Enclosure Type | ODP (Open Dripproof) |
| Estimated Weight | 16.50 |
| Family Series | US Motors Motors |
| FL Amps | 3 |
| FL Efficiency | 61.5 |
| Frame | 48 |
| Frequency | 60 Hz |
| Full Load Amps | 3.0 |
| Gross Weight | 22 lbs |
| Hertz | 60 |
| Horsepower | 1/3 hp |
| HP | 1/3, 0.33 |
| Hz | 60 |
| Ins. Class | B |
| Insulation Class | B |
| Item | Motor |
| Item Number | D13B2K4A9 |
| Kilowatts | 0.3 kW |
| Length Less Shaft | 7 15/16 in |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | S055PZG7835022B |
| Manufacturer Part Number | D13B2K4A9 |
| Manufacturers Warranty . | 1 yr |
| Max. Ambient Temp. | 40 Degrees C |
| Maximum Ambient Tempera. | 40? C |
| Model Number | S055PZG7835022B |
| Motor Application | General Purpose |
| Motor Bearings | Sleeve |
| Motor Design | Split-Phase |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Cradle Base |
| Motor Service Factor | 1 |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Commercial and Industri. |
| Motor Thermal Protection | None |
| Mounting | Cradle, Base |
| Mounting Type | Cradle |
| Nameplate RPM | 1,725 |
| NEMA Frame | 48 |
| Net Weight | 0 lbs |
| No. of Speeds | 1 |
| Nominal Efficiency | 61.5 % |
| Nominal Voltage | 240 VAC |
| Number of Poles | 4 |
| Number of Speeds | 1 |
| Overall Length | 9 3/8 in |
| Overload Protection | None |
| Part Number | D13B2K4A9 |
| Part Winding Start Capa. | No |
| Phase | 1, Single |
| Product Type | Fractional HP (HVAC), S. |
| Removable Base | Permanently Lubricated . |
| Rotation | Reversible |
| RPM | 1725, 1,725 RPM |
| RPM Range | 1,701-1,800 |
| Service Factor | 1.00 |
| Shaft Dia. | 1/2 in |
| Shaft Length | 1 1/2 in |
| Ship Weight | 15 lbs. |
| Speed (RPM) | 1725 |
| Standards | CSA Certified, UL Recog. |
| Usable @ 200V | No |
| Usable @ 208V | No |
| Voltage | 230V AC, 230V |
| Voltage (AC) | 230 VAC |
| Voltage Compatibility | 115/200-230V AC, 115/20. |
| Volts | 230 |
| Weight | 22 lb |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB466468 | 147.95 | 1 | In Stock | | US Motors | | 147.95 @ 1 |
 | Zoro | G1931269 | 148.1 | 1 | In Stock | | U.S. Motors | 22.0 | 148.1 @ 1 |
 | motorsandcontrol.com | D13B2K4A9 | 161.86 | 1 | In Stock | | US Motors (Nidec) | 16.5 | 161.86 @ 1 |
 | emotorpro.com | D13B2K4A9 | 163.83 | 1 | In Stock | | U.S. Motors | 15.0 | 163.83 @ 1 |
 | Galco | D13B2K4A9-USM | 165.72 | 1 | In Stock | | US Motors | 22.0 | 165.72 @ 1 |
 | National Supply Network | B466468 | 172.74 | 1 | In Stock | | US MOTORS | | 172.74 @ 1 |
 | bscsource.com | D13B2K4A9 | 206.69 | 1 | In Stock | | US Motors | | 206.69 @ 1 |
 | Guardian | 04091856 | 221.89 | 1 | In Stock | | US Motors | | 221.89 @ 1 |
| motionindustries.com | 02898279 | 243.73 | 1 | In Stock | | US Motors (Nidec) | | 243.73 @ 1 |
