- mpnD13B2N4Z9
- brandname: US Motors (Nidec)
- manufacturername: US Motors (Nidec)

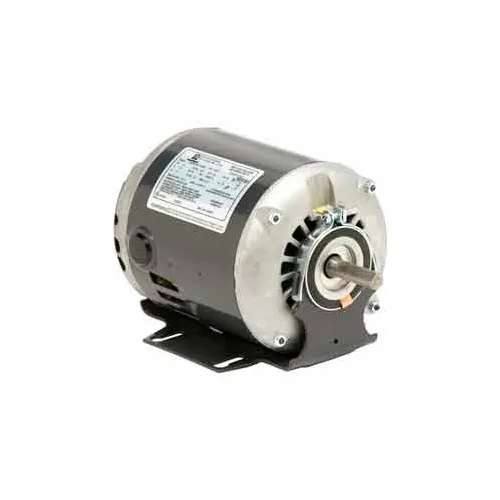

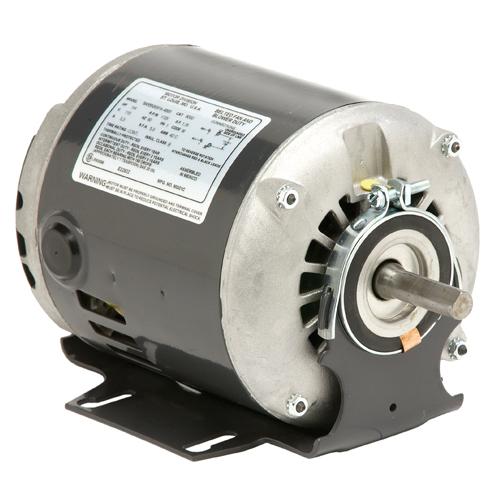

US Motors (Nidec) D13B2N4Z9 - General Purpose Motor - 1 ph, 1/3 hp, 1800 rpm, 115 V, 48Z Frame, ODP Enclosure, 60 Hz, HORZ-Foot Mount
- Brand: US Motors (Nidec)
- Binding: Misc.
- Manufacturer: US Motors (Nidec)
- Label: US Motors (Nidec)
Attributes
| Key | Value |
|---|
| Amps | 7 |
| Bearing Type | Ball |
| Bearings | Ball |
| Catalog Page | N/A |
| Composition | Rolled Steel |
| Construction | Rolled Steel |
| Country of Origin | Mexico |
| Country of Origin (subj. | Mexico |
| Drive End Flange Type | Standard |
| Duty Cycle | Continuous |
| Enclosure | Open Drip Proof, Open |
| Enclosure Type | ODP (Open Dripproof) |
| Estimated Weight | 24.20 |
| Family Series | US Motors Motors |
| FL Amps | 7 |
| Frame | 48Z |
| Frequency | 60 Hz |
| Full Load Amps | 7.0 |
| Gross Weight | 22 lbs |
| Hertz | 60 |
| Horsepower | 1/3 hp |
| HP | 1/3, 0.33 |
| Hz | 60 |
| Ins. Class | B |
| Insulation Class | B |
| Item | Motor |
| Item Number | D13B2N4Z9 |
| Item? | 56HZ51 |
| Kilowatts | 0.3 kW |
| Length Less Shaft | 7 7/8 in, 7-7/8 in |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | S055RMM8349012B |
| Manufacturer Part Number | D13B2N4Z9 |
| Manufacturers Warranty . | 1 yr |
| Max. Ambient Temp. | 40 Degrees C, 40 ?C |
| Maximum Ambient Tempera. | 40? C |
| Mfr. Model? | D13B2N4Z9 |
| Model Number | S055RMM8349012B |
| Motor Application | General Application, Ge. |
| Motor Bearings | Ball |
| Motor Design | Split-Phase |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Cradle/Stud, Cradle Bas. |
| Motor Service Factor | 1.35 |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Commercial and Industri. |
| Motor Thermal Protection | None |
| Mounting | Base/Stud, Cradle |
| Mounting Type | Cradle |
| Nameplate RPM | 1,725 |
| NEMA Frame | 48Z |
| Net Weight | 0 lbs |
| No. of Speeds | 1 |
| Nominal Efficiency | 57.36 % |
| Nominal Voltage | 120 VAC |
| Number of Poles | 4 |
| Number of Speeds | 1 |
| Overall Length | 9 13/16 in, 9-13/16 in |
| Overload Protection | None |
| Part Number | D13B2N4Z9 |
| Part Winding Start Capa. | No |
| Phase | 1, Single |
| Product Type | Fractional HP (HVAC), S. |
| Removable Base | Permanently Lubricated . |
| Rotation | Reversible |
| RPM | 1725, 1,725 RPM |
| RPM Range | 1,701-1,800 |
| Service Factor | 1.35 |
| Shaft Dia. | 1/2 in |
| Shaft Length | 2 in |
| Ship Weight | 22 lbs. |
| Speed (RPM) | 1725 |
| Standards | CSA Certified, UL Recog. |
| UNSPSC | 26101602 |
| Usable @ 200V | No |
| Usable @ 208V | No |
| Voltage | 110-120V, 115V AC |
| Voltage (AC) | 115 VAC |
| Voltage Compatibility | 115/208-230V AC, 115/23. |
| Volts | 115 |
| Weight | 22 lb |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G1930797 | 177.67 | 1 | In Stock | | U.S. Motors | 22.0 | 177.67 @ 1 |
 | Global Industrial | WBB466230 | 189.95 | 1 | In Stock | | US Motors | | 189.95 @ 1 |
 | motorsandcontrol.com | D13B2N4Z9 | 200.63 | 1 | In Stock | | US Motors (Nidec) | 24.2 | 200.63 @ 1 |
 | emotorpro.com | D13B2N4Z9 | 203.07 | 1 | In Stock | | U.S. Motors | 22.0 | 203.07 @ 1 |
 | Galco | D13B2N4Z9-USM | 205.42 | 1 | In Stock | | US Motors | 22.0 | 205.42 @ 1 |
 | National Supply Network | B466230 | 211.24 | 1 | In Stock | | US MOTORS | | 211.24 @ 1 |
| Grainger | 56HZ51 | 255.92 | 1 | In Stock | | U.S. MOTORS | 22.0 | 255.92 @ 1 |
| motionindustries.com | 02898282 | 262.91 | 1 | In Stock | | US Motors (Nidec) | | 262.91 @ 1 |
