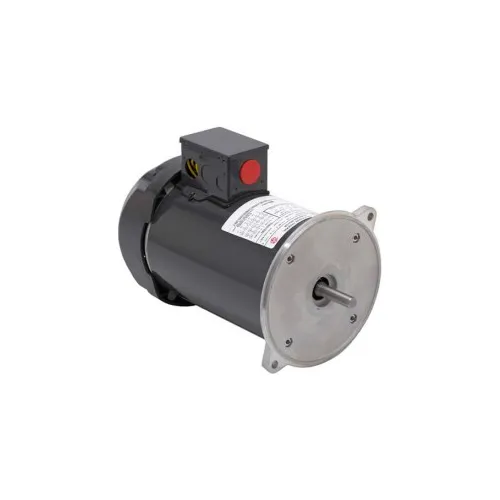

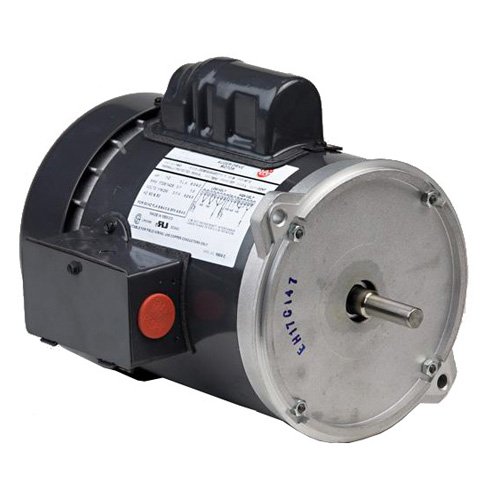

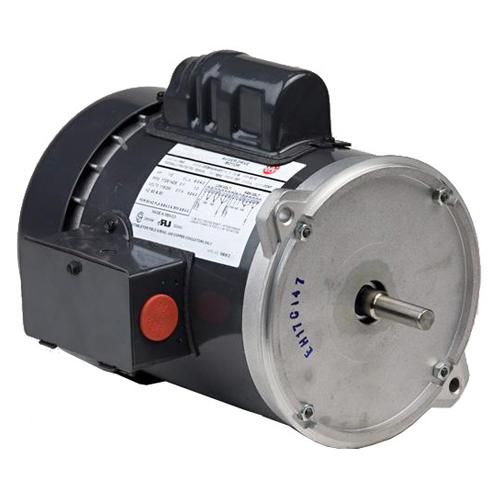

US Motors (Nidec), FD34CM2PZY, .75HP, 1725RPM, 1PH, 115V;230V, 56Z Frame, Auger Duty Motor.
Weight:
2.375
Weight:
2.375 LB
Preferred Price:
445.95
Price:
445.95
Min Simple Price:
251.95
Absolute Min Price:
357.76
Min Price:
357.76
Dimensions:
[19.0, 11.0, 11.0]
qty:
21
simpleSku:
OTIwNg:::FD34CM2PZY
sku:
OTIwNg::21:FD34CM2PZY@y0
condition:
11
seller:
Global Industrial
amzMan:
us motors (nidec)
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| Amps | 10.6/5.3/11.8/5.9 |
| Bearings | Ball |
| Composition, Construction | Rolled Steel |
| Drive End Flange Type | Standard |
| Enclosure | TEFC, Totally Enclosed Fan Cooled |
| Enclosure Type | TEFC (Totally Enclosed Fan Cooled) |
| Estimated Weight | 35.20 |
| Family Series | US Motors Motors |
| FL Amps | 10.6/5.3&11.8/5.9 |
| Frame | 56YZ |
| Frame, NEMA Frame | 56Z |
| Frequency | 60 Hz |
| Gross Weight | 26 lbs |
| Hertz | 50, 60 |
| Horsepower | 3/4 hp |
| HP | 3/4, 0.75 |
| Hz | 50/60 |
| Insulation Class | B |
| Item | Motor,3/4HP,1725&1425RPM,115/230V,56Z |
| Item Number, Manufacturer Part Number, Part Number | FD34CM2PZY |
| Kilowatts | 0.6 kW |
| Manufacturer | US Motors (Nidec), US Motors |
| Manufacturer Model #, Model Number | C063GJK4540025B |
| Maximum Ambient Temperature | 40? C |
| Mounting | Footless |
| Mounting, Mounting Type | Flange |
| Net Weight | 0 lbs |
| Nominal Voltage | 120 VAC, 240 VAC |
| Number of Poles | 4 |
| Number of Speeds, Phase | 1 |
| Overload Protection, Thermal Protection | Manual |
| Product Type | General Purpose, Capacitor Start |
| Rotation | Reversible |
| RPM | 1,725 RPM |
| RPM, Speed (RPM) | 1725 |
| Service Factor | 1.00 |
| Ship Weight | 32 lbs. |
| Voltage | 110-120V, 230V |
| Voltage (AC) | 115 VAC, 230 VAC |
| Volts | 115, 230 |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | Global Industrial | WBB467604 | 251.95 | 251.95 | 1 | In Stock | US Motors | 251.95 @ Qty: 1+ | ||
 | emotorpro.com | FD34CM2PZY | 270.73 | 270.73 | 1 | In Stock | U.S. Motors | 32.0 | 270.73 @ Qty: 1+ | |
 | National Supply Network | B467604 | 275.04 | 275.04 | 1 | In Stock | US MOTORS | 275.04 @ Qty: 1+ | ||
 | Zoro | G0408141 | 329.72 | 329.72 | 1 | In Stock | U.S. Motors | 38.0 | 329.72 @ Qty: 1+ | |
| motorsandcontrol.com | FD34CM2PZY | 550.52 | 550.52 | 1 | In Stock | US Motors (Nidec) | 35.2 | 550.52 @ Qty: 1+ | |
 | Galco | FD34CM2PZY-USM | 563.63 | 563.63 | 1 | In Stock | US Motors | 26.0 | 563.63 @ Qty: 1+ | |
| motionindustries.com | 02901517 | 828.97 | 828.97 | 1 | In Stock | US Motors (Nidec) | 828.97 @ Qty: 1+ |
