- mpnU14S2AC
- brandname: US Motors (Nidec)
- manufacturername: US Motors (Nidec)

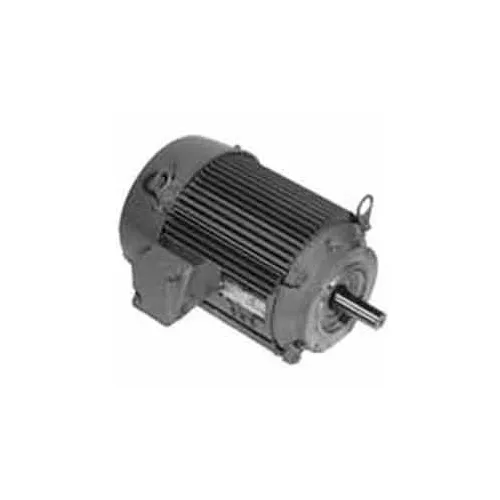

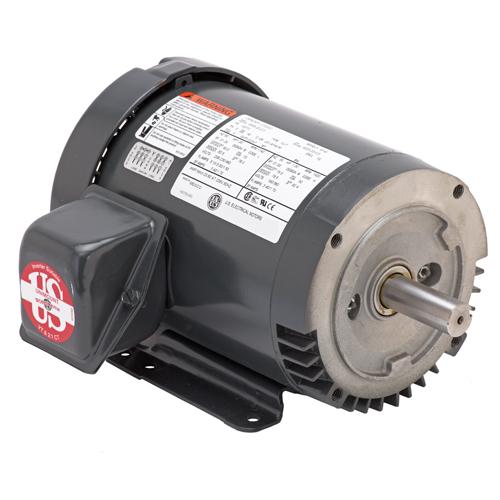

US Motors U14S2AC
- Brand: US Motors-Nidec
- PartNumber: U14S2AC
- Manufacturer: US Motors-Nidec
- Label: US Motors-Nidec
Attributes
| Key | Value |
|---|
| Amps | 1.3-1.4/0.7 |
| Bearings | Ball |
| Composition | Rolled Steel |
| Construction | Rolled Steel |
| Country of Origin (subj. | Mexico |
| Drive End Flange Type | C-Face |
| Efficiency | 70% |
| Enclosure | TEFC, Totally Enclosed . |
| Enclosure Type | TEFC (Totally Enclosed . |
| Estimated Weight | 22.00 |
| Family Series | US Motors Motors |
| FL Amps | 1.3-1.4/0.7 |
| FL Efficiency | 70 |
| Frame | 56C |
| Frequency | 60 Hz |
| Gross Weight | 24 lbs |
| Hertz | 50, 60 |
| Horsepower | 1/4 hp |
| HP | 0.25, 1/4 |
| Hz | 60 |
| Insulation Class | F |
| Item | Motor,1/4HP,1775rpm,56C. |
| Item Number | U14S2AC |
| Kilowatts | 0.2 kW |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | F001 |
| Manufacturer Part Number | U14S2AC |
| Maximum Ambient Tempera. | 40? C |
| Model Number | F001 |
| Mounting | Foot Mount, Base/Face |
| Mounting Type | C-Face Footed |
| NEMA Frame | 56C |
| Net Weight | 1.25 lbs |
| Nominal Voltage | 208 VAC, 240 VAC, 480 V. |
| Number of Poles | 4 |
| Number of Speeds | 1 |
| Part Number | U14S2AC |
| Phase | 3 |
| Product Type | General Purpose, Three . |
| Rotation | Reversible |
| RPM | 1775, 1,775 RPM |
| Service Factor | 1.25 |
| Ship Weight | 20 lbs. |
| Speed (RPM) | 1770 |
| Voltage | 190V, 230V, 380V, 460V |
| Voltage (AC) | 208-230 VAC, 460 VAC |
| Volts | 208, 230, 460 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G7729912 | 169.0 | 1 | In Stock | | U.S. Motors | 20.0 | 169.0 @ 1 |
 | Global Industrial | WBB467278 | 179.95 | 1 | In Stock | | US Motors | | 179.95 @ 1 |
 | emotorpro.com | U14S2AC | 200.08 | 1 | In Stock | | U.S. Motors | 20.0 | 200.08 @ 1 |
 | motorsandcontrol.com | U14S2AC | 204.36 | 1 | 1 | | US Motors (Nidec) | 22.0 | 204.36 @ 1 |
 | Galco | U14S2AC-USM | 204.37 | 1 | In Stock | | US Motors | 24.0 | 204.37 @ 1 |
 | National Supply Network | B467278 | 216.93 | 1 | In Stock | | US MOTORS | | 216.93 @ 1 |
 | bscsource.com | U14S2AC | 263.39 | 1 | In Stock | | US Motors | | 263.39 @ 1 |
 | Guardian | 86347499 | 266.26 | 1 | In Stock | | US Motors | | 266.26 @ 1 |
| motionindustries.com | 00545588 | 333.56 | 1 | In Stock | | US Motors (Nidec) | | 333.56 @ 1 |
