- mpnU15P2D
- brandname: US Motors (Nidec)
- manufacturername: US Motors (Nidec)

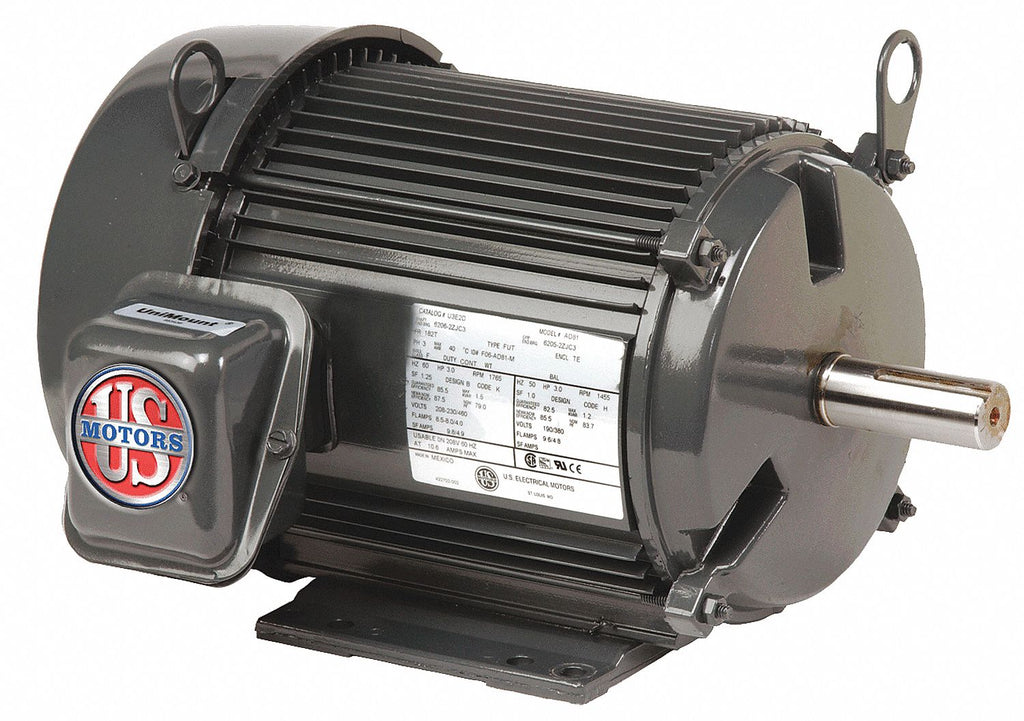

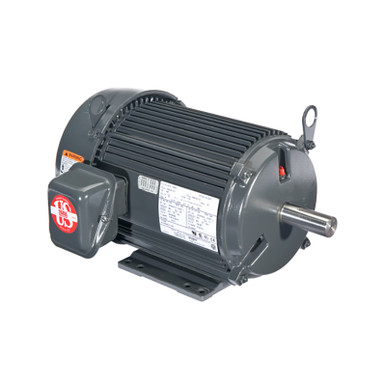

US Motors Unimount TEFC U15P2D, 3-Phase, 15 HP, Unimount, 1775 RPM Motor, TEFC
- Brand: US Motors
- PartNumber: U15P2D
- Model: U15P2D
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: US Motors
- Label: US Motors
Attributes
| Key | Value |
|---|
| CC Number | CC030A |
| Composition | Aluminum |
| Construction | Aluminum |
| Country of Origin (subj. | Mexico |
| Drive End Flange Type | Standard |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Enclosure | TEFC, Totally Enclosed . |
| Estimated Weight | 198.00 |
| Family Series | US Motors Motors |
| FL Amps | 40-37/18.4 |
| FL Efficiency | 92.4 |
| Footnotes | 5,10 |
| Frame | 254T |
| Frame Material | Aluminum |
| Frequency | 60 Hz |
| Full Load Amps | 37.0/18.4 |
| Green Certification or . | NEMA Premium Rated |
| Gross Weight | 180 lbs |
| Hertz | 50, 60 |
| Horsepower | 15 hp |
| HP | 15 |
| Hz | 60/50 |
| Ins. Class | F |
| Item | General Purpose Motor |
| Item Number | U15P2D |
| Kilowatts | 11.2 kW |
| Length Less Shaft | 19 5/8 in |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Part Number | U15P2D |
| Manufacturers Warranty . | 2 yr |
| Max. Ambient Temp. | 40 Degrees C |
| Model Number | DZ06 |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Efficiency Group | Energy Efficient |
| Motor Enclosure Design | Totally Enclosed Fan-Co. |
| Motor Frame Material | Cast Aluminum |
| Motor Mounting Position | Horizontal or Vertical . |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.25 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | None |
| Mounting | Foot Mount |
| Mounting Type | Foot Mount |
| Nameplate RPM | 1,800 |
| NEMA Design | B |
| NEMA Frame | 254T |
| Net Weight | 11.25 lbs |
| No. of Speeds | 1 |
| Nominal Efficiency | 92.4 % |
| Nominal Voltage | 208 VAC, 240 VAC, 480 V. |
| Number of Poles | 4 |
| Number of Speeds | 1 |
| Overall Length | 23 7/8 in |
| Part Number | U15P2D |
| Phase | 3, Three |
| Product Type | General Purpose |
| RPM | 1,775 RPM |
| RPM Group | 1701-1800 |
| RPM Range | 1,701-1,800 |
| Shaft Dia. | 1 5/8 in |
| Shaft Length | 4 in |
| Speed (RPM) | 1775 |
| Standards | CE, CSA, UL |
| Voltage | 190V, 230V, 380V, 460V,. |
| Voltage (AC) | 208-230 VAC, 460 VAC |
| Voltage Compatibility | 200-230/440V AC, 200-23. |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| motionindustries.com | 00545310 | 63.98 | 1 | In Stock | | US Motors (Nidec) | | 63.98 @ 1 |
 | motorsandcontrol.com | U15P2D | 1350.4 | 1 | 1 | | US Motors (Nidec) | 198.0 | 1350.4 @ 1 |
 | Galco | U15P2D-USM | 1505.3 | 1 | In Stock | | US Motors | 180.0 | 1505.3 @ 1 |
 | vfds.com | U15P2D | 1518.0 | 1 | In Stock | | US Motors (Nidec) | | 1518.0 @ 1 |
 | National Supply Network | B467182 | 1682.12 | 1 | In Stock | | US MOTORS | | 1682.12 @ 1 |
 | Zoro | G4524475 | 1695.84 | 1 | In Stock | | U.S. Motors | 289.0 | 1695.84 @ 1 |
 | Global Industrial | WBB467182 | 1749.0 | 1 | In Stock | | US Motors | | 1749.0 @ 1 |
 | sustainablesupply.com | C2828723 | 2047.59 | 1 | In Stock | | US Motors | 289.0 | 2047.59 @ 1 |
| uri.com | U15P2D | 3812.66 | 1 | In Stock | | U.S. Motors | 240.0 | 3812.66 @ 1 |
