mpn:
brand:
manufacturer:
MPN:
Description:

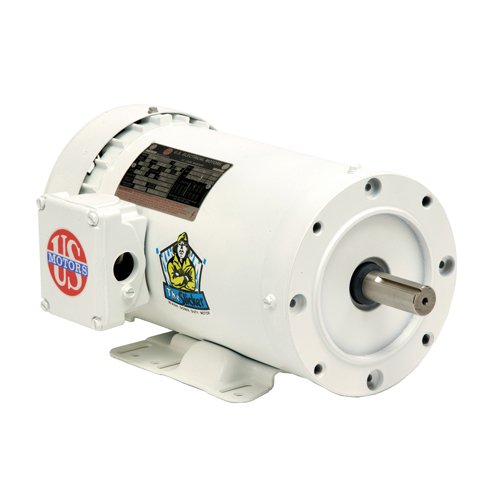

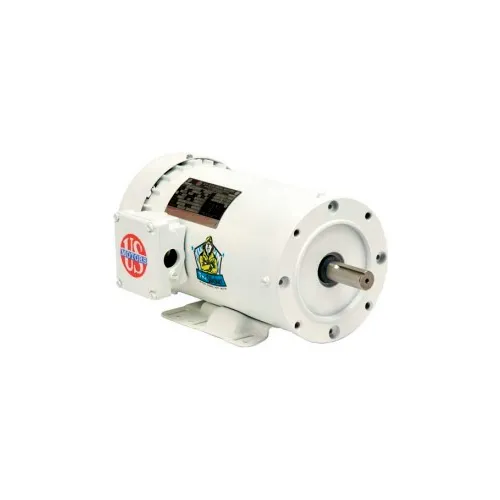

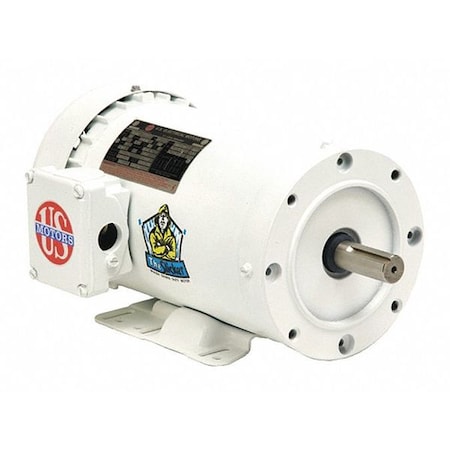

US Motors (Nidec), WD12C2JCR, .5HP, 1725RPM, 1PH, 115V;208V;230V, 56C Frame, C-Face Flange, Footless, TENV, Washdown Duty Painted.
Weight:
2.259375
Weight:
2.259375 LB
Preferred Price:
771.72
Price:
771.72
Min Simple Price:
436.0
Absolute Min Price:
619.11
Min Price:
619.11
Dimensions:
[19.0, 11.0, 11.0]
qty:
21
simpleSku:
OTIwNg:::WD12C2JCR
sku:
OTIwNg::CW:WD12C2JCR@y0
condition:
11
seller:
Zoro
amzMan:
us motors (nidec)
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| Amps, FL Amps, Full Load Amps | 8.8/4.3-4.4 |
| Bearings, Motor Bearings | Ball |
| Body Dia. | 6.3 in |
| Bolt Circle Dia. | 5 7/8 in |
| Composition, Construction | Rolled Steel |
| Conduit Box Location | Exterior |
| Country of Origin (subject to change) | Mexico |
| Drive End Flange Type, Mounting Type | C-Face |
| Duty Cycle | Continuous |
| Enclosure | Totally Enclosed Non-Ventilated, TENV |
| Enclosure Type | TENV (Totally Enclosed Non Ventilated) |
| Estimated Weight | 35.20 |
| Family Series | US Motors Motors |
| Finish | White Epoxy |
| Frame, NEMA Frame | 56C |
| Frequency | 60 Hz |
| Gross Weight | 32 lbs |
| Hertz, Hz | 60 |
| Horsepower | 1/2 hp |
| HP | 0.5, 1/2 |
| Ins. Class, Insulation Class | F |
| Item Number, Manufacturer Part Number, Part Number | WD12C2JCR |
| Item, Product Type | Washdown Motor |
| Kilowatts | 0.4 kW |
| Length Less Shaft | 10 7/8 in |
| Manufacturer | US Motors (Nidec), US Motors |
| Manufacturer Model #, Model Number | C063JLL5443015B |
| Max. Ambient Temp. | 40 Degrees C |
| Maximum Ambient Temperature | 40? C |
| Motor Application | Washdown |
| Motor Design | Capacitor-Start |
| Motor Enclosure Design | Totally Enclosed Nonventilated |
| Motor Frame Material, Shaft Material | Stainless Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type, Mounting | Face |
| Motor Service Factor | 1.2 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CCW |
| Motor Sub Application | Pool and Spa Pump |
| Motor Thermal Protection, Overload Protection | None |
| Mounting | Footless |
| Nameplate RPM | 1,725 |
| Net Weight | 0 lbs |
| No. of Speeds, Number of Speeds, Phase | 1 |
| Nominal Efficiency | 74.8 % |
| Nominal Voltage | 120 VAC, 208 VAC, 240 VAC |
| Number of Poles | 4 |
| Overall Length | 12 3/4 in |
| Phase | Single |
| Product Type | Washdown Duty, Capacitor Start |
| Rotation | Reversible |
| RPM | 1,725 RPM |
| RPM Range | 1,701-1,800 |
| RPM, Speed (RPM) | 1725 |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8 in |
| Shaft Length | 1 7/8 in |
| Ship Weight | 32 lbs. |
| Standards | BISSC Certified, USDA |
| Usable @ 200V | No |
| Usable @ 208V | Yes |
| Voltage | 115/208-230V AC, 110-120V, 208V, 230V |
| Voltage (AC) | 115 VAC, 208-230 VAC |
| Voltage Compatibility | 115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC |
| Volts | 115, 208, 230 |
| Weight | 32 lb |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | Zoro | G0399644 | 436.0 | 436.0 | 1 | In Stock | U.S. Motors | 36.15 | 436.0 @ Qty: 1+ | |
 | Global Industrial | WBB466102 | 460.95 | 460.95 | 1 | In Stock | 17 | US Motors | 460.95 @ Qty: 1+ | |
 | emotorpro.com | WD12C2JCR | 465.43 | 465.43 | 1 | In Stock | U.S. Motors | 32.0 | 465.43 @ Qty: 1+ | |
 | Galco | WD12C2JCR-USM | 489.6 | 489.6 | 1 | In Stock | US Motors | 32.0 | 489.6 @ Qty: 1+ | |
| motorsandcontrol.com | WD12C2JCR | 489.6 | 489.6 | 1 | In Stock | US Motors (Nidec) | 35.2 | 489.6 @ Qty: 1+ | |
 | National Supply Network | B466102 | 501.48 | 501.48 | 1 | In Stock | US MOTORS | 501.48 @ Qty: 1+ | ||
 | Guardian | 04177465 | 606.12 | 606.12 | 1 | In Stock | US Motors | 606.12 @ Qty: 1+ | ||
 | bscsource.com | WD12C2JCR | 827.49 | 827.49 | 1 | In Stock | US Motors | 827.49 @ Qty: 1+ | ||
| motionindustries.com | 02899507 | 912.37 | 912.37 | 1 | In Stock | US Motors (Nidec) | 912.37 @ Qty: 1+ |
