Assembly Required | No |
Back Caster Diameter (in.) | 6 |
Back Caster Type | Swivel |
Back Caster Width (in.) | 1-1/2 |
Caster Material | Poly-on-Steel |
Color | Blue |
Fork Height (in.) | 2-1/2 |
Fork Lenth (in.), Platform Length (in.) | 24 |
Fork Size | 4-3/8 W x 2-1/2 H in |
Fork Width (in.), individual fork dimensions: | 4-3/8 |
front caster size & type: | (2) 3 |
Handle Height (in.) | 42 |
handle height: | 42 in |

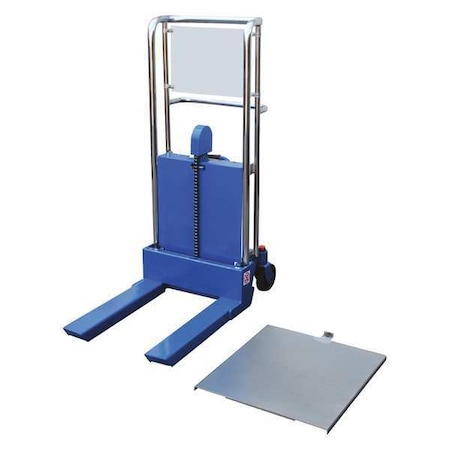

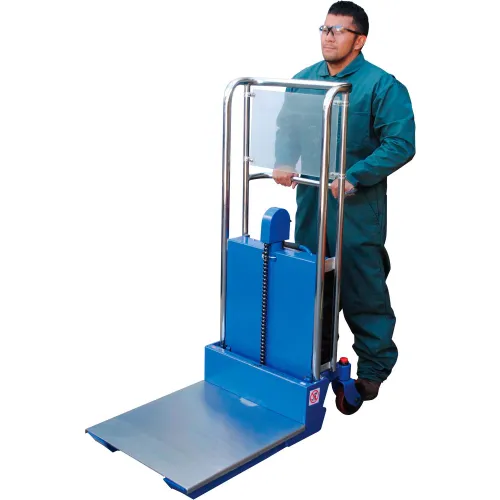

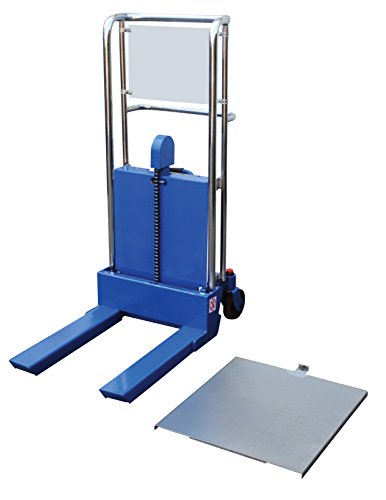

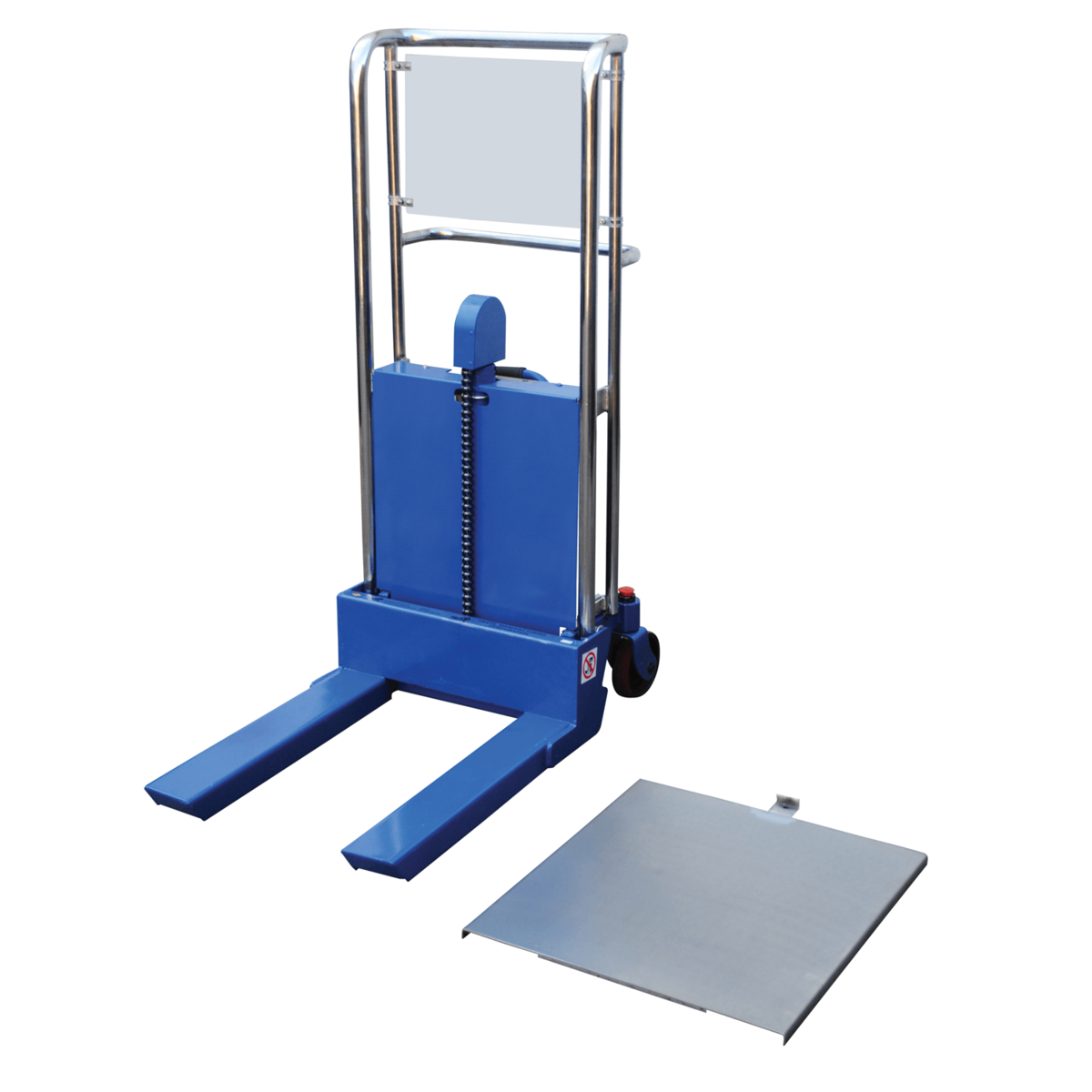

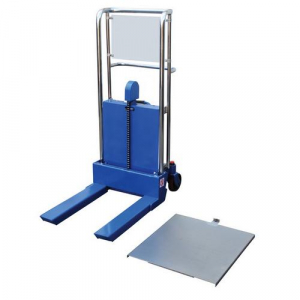

Item | Portable Foot Pump,Hefti-Lift,41 x 54" |
Load Capacity | 880 lb |
Load Capacity, weight capacity: | 880 lbs |
Lowered Height (in.) | 3-1/2 |
Lowered Height, lowered height: | 3-1/2 in |
Material | Welded Steel |
material: | Steel |
Number of Pumps (quantity), Overall Fork Width (in.) | 22 |
Operation, Operation Type, operation: | Foot Pump |
Outrigger Inside Dimension (in.) | 14 |
Outrigger Outside Dimension (in.) | 18-1/4 |
Overall Dimension | 36 x 23 x 55 in |
Overall Height | 55 in, 55" |
overall height (raised): | 55 |
Overall Length, overall length: | 36 in |
Overall Width | 23" |
Overall Width, overall width:, Platform Width | 23 in |
Package Quantity | 1 |
Platform Length | 24 in |
Platform Size | 23 x 24 in |
platform size (w x l):, Platform Width (in.) | 23 |
Platform Travel per Stroke (in.) | 3/4 |
Raised Height (in.) | 44 |
Raised Height, raised height: | 44 in |
rear caster size & type: | (2) 6 |
Service Range | 3-1/2 to 44 in |
Special Features | Non-slip Chain |
Style | Hydraulic<BR />Portable |
Type | Hefti-Load Lift |
Uniform Capacity (lbs.) | 880 |
weight: | 308 lbs |
Wheel / Caster Dimension | 3 x 2 in (Front) / 6 x 2 in (Rear) |
Wheel / Caster Material | Polyurethane |
Wheel / Caster Type | Swivel / Rigid |
