Vestil H-150-MD-GY-SG
Vestilzoom
brand:
manufacturer:
Description:

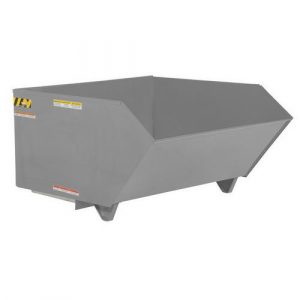

<p>The Medium Duty Low Profile 90? Self-Dumping Steel Hopper feature a full ninety (90) degree dump angle with a cushioned rubber bumper stop. The low profile design is essential for convenient loading. Dumping with a fork truck is quick and simple. A cable is pulled from the seat of the fork truck to dump the hopper. The unit returns to an upright and locked position when lowered to the ground. The included safety restraint should be properly secured to a fork truck before dumping. </p> <p><strong>Features: </strong> </p> <ul><li>Low-profile design makes loading easier </li> <li>Included manual pull-cable dumps hopper from seat of fork truck </li> <li>Full 90? dump angle returns to upright position when lowered to ground </li> <li>Features heavy-duty latch mechanism for worker safety </li> </ul>

Attributes

Key Value
Assembly RequiredNo
Fork Pocket Center (in.)21-5/8
Formed Base Thickness (in.)1/4
Front Lip to Floor (in.)32-5/16
MaterialSteel
Pull Cable Length (ft.)4
Steel (gauge)10
Uniform Capacity (pounds)4,000
Usable Fork Pocket Height (in.)2
Usable Fork Pocket Length (in.)22
Usable Fork Pocket Width (in.)7
Usable Height (in.)35-7/16
Usable Length (in.)46-1/16
Usable Width (in.)48-3/16
Volume (cubic yards)1-1/2
