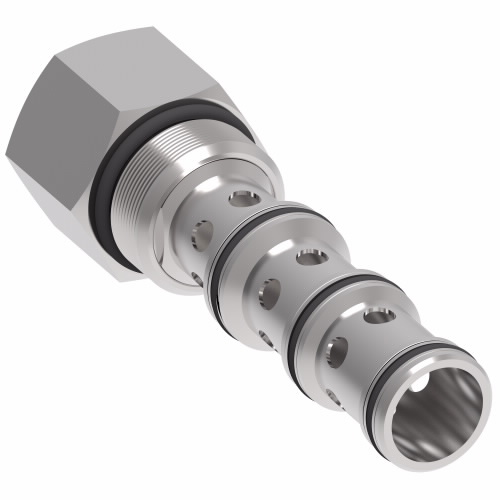

889311 EATON | Search our online catalog of Industrial Hydraulics. Start your quote online to connect with our team of technical experts for support.
Attributes
| Key ^ | Value |
|---|---|
| Actuation option, Special features17 | None |
| Application | Harvesters, refuse haulers, mobile and industrial applications |
| Cavity | C-10-4 |
| Eccn | EAR99 |
| Flow rate12 | 26 litre per minute |
| Fluid compatibility13 | MIL?H?5606, SAE 10, SAE 20, etc |
| Function | Shuttle Valve |
| Housing | No |
| Icc2 | SICV Directional Control Valves |
| Installation type | Screw-in Cartridge |
| Leakage | 164 cc/min maximum @ 210 bar |
| Model Code | DSV4-10-C-0-80 |
| Number of housing ports, Number of valve ports | 4 |
| Operating temperature | -40?C to +120?C |
| Pilot pressure | 5.5 bar |
| Port type, Valve Material | Cartridge Only |
| Pressure rating | 350 bar |
| Product height uom, Product length uom, Product width uom | inch |
| Product height, Product width | 1.00 |
| Product length | 3.04 |
| Product trade name | DSV4-10 Series |
| Product weight | 0.32 |
| Product weight uom | pound |
| Recommended filtration level | 18/16/13 microns |
| Seal Type | Buna-N |
| Spool configuration | Closed |
| Style | Spool |
| Sub brand | Vickers |
| Valve torque into cavity | Aluminium housing - 47-54 Nm; Steel housing - 68-75 Nm |
