mpn:
brand:
manufacturer:
MPN:
Weight:
0.0315625
Weight:
0.0315625 LB
Preferred Price:
86.72
Price:
86.72
Min Simple Price:
47.39
Absolute Min Price:
67.29
Min Price:
67.29
Dimensions:
[4.0, 2.0, 2.0]
qty:
21
simpleSku:
DY5OTQ:::90295
sku:
DY5OTQ::76:90295@y0
condition:
11
seller:
Zoro
amzMan:
viega
HazMat:
False
DropShip:
False

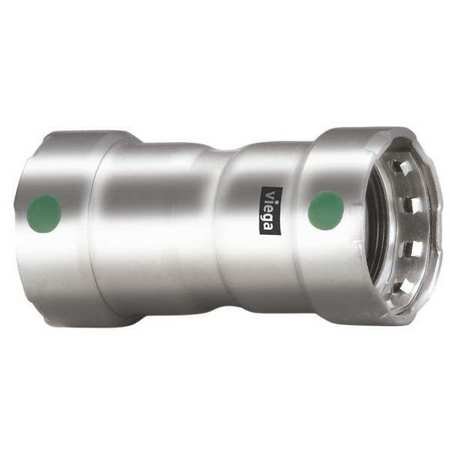

Attributes
| Key ^ | Value |
|---|---|
| Application | Potable Water |
| Bag Package Quantity, Minimum Order Quantity | 5 |
| Collection | MegaPress? Stainless 316 |
| Compliance | CRN 13492.5 A/B, IAPMO PS117, ICC-LC1002, NSF 372, NSF/ANSI 61 |
| Connection Type | Press-Fit x Press-Fit |
| Country of Origin (subject to change) | Germany |
| Dimensions | 1'' x 1'' |
| End Connection Type | Press |
| Finish | No Finish Group |
| Fitting Body Material, Material, Tube Fitting Material | 316 Stainless Steel |
| Fitting Connection Type, Pipe Fitting Connection Type | Press x Press |
| Fitting Material | Stainless Steel |
| Fitting Pipe Size, Fitting Side A Pipe Size, Fitting Side B Pipe Size, Fitting Side B Tube Outer Diameter, For Tube OD | 1 in |
| Fitting Shape | Connector |
| Fitting Side A Connection Type, Fitting Side B Connection Type | Press-Fit |
| Height | 1.250" |
| Includes Center Stop | Rolled Center Stop |
| Item | Coupling with Stop |
| Length | 3.264" |
| Made In | Made In Germany |
| Material Grade | 316 |
| Max. Pressure, Maximum Operating Pressure | 200 psi |
| Maximum Operating Temperature | 250 Degrees F, 250 Degrees F |
| Minimum Operating Temperature | 0 Degrees F, 0 Degrees F |
| O-Ring Material | EPDM |
| Overall Length | 3 1/4 in |
| Pipe Size (Fittings) | 1" x 1" |
| Pipe Size, Pipe Size - Pipe Fitting, Tube Size | 1 in x 1 in |
| Reference ID | 4106118 |
| Specific Fitting Shape | Straight Connector |
| Specific Pipe Fitting Shape | Coupling |
| Standards | ASTM A312, ASTM A403, CRN 13492.5 A/B, IAPMO, IAPMO PS 117, ICC, ICC LC1002, NSF/ANSI 372, NSF/ANSI 61, TSSA/ASME B31.1, TSSA/ASME B31.3, TSSA/ASME B31.9 |
| Stop and Shape | Rolled Center Stop Straight Connector |
| Temp. Range | 0 Degrees to 250 Degrees F |
| UPC | 691514902951 |
| Weight | 0.505 lbs. |
| Width | 1.000" |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | Zoro | G9683129 | 47.39 | 161.126 | 1 | 5 | Viega | 0.49 | 47.39 @ Qty: 5+ | |
| grainger.ca | WWG53UA27 | 55.887062 | 190.0160108 | 1 | 5 | VIEGA MEGAPRESS | 0.49 | 55.887062 @ Qty: 5+ | ||
 | suppliesdepot.com | 90295 | 58.49 | 198.866 | 1 | 5 | VIEGA | 58.49 @ Qty: 5+ | ||
 | Edge Supply | 90295 | 77.99 | 265.166 | 1 | 5 | Viega | 0.505 | 77.99 @ Qty: 5+ | |
| AmazonSC | B076FB1276 | 80.12 | 272.408 | 1 | 5 | Viega | 80.12 @ Qty: 5+ |
