| Application | Potable Water |
| Compliance | ASME B31, ASTM A312, ASTM A554, IAMPO National Standard Plumbing Code (NSPB), IAPMO California Plumbing Code (CPC), IAPMO Uniform Mechanical Code (UMC), IAPMO Uniform Plumbing Code (UPC), ICC International Mechanical Code (IMC), ICC International Plumbing Code (IPC), ICC International Residential Code (IRC), National Building Code of Canada (NBCC), National Plumbing Code of Canada (NPCC) |
| Connection Type | Press-Fit x Press-Fit |
| Country of Origin (subject to change) | Germany |
| End Connection Type | Press |
| Fitting Body Material, Tube Fitting Material | 316 Stainless Steel |
| Fitting Connection Type | Press x Press |
| Fitting Material | Stainless Steel |
| Fitting Pipe Size, Fitting Side A Pipe Size, Fitting Side B Pipe Size | 1 1/4 in |

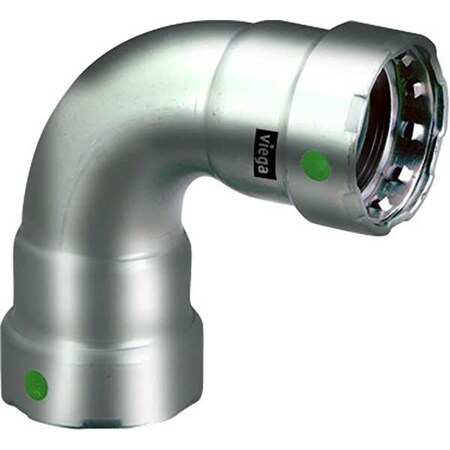

| Fitting Shape | Elbow |
| Fitting Side A Connection Type, Fitting Side B Connection Type | Press-Fit |
| Item, Specific Fitting Shape, Stop and Shape | 90 Degrees elbow |
| Material Grade | 316 |
| Max. Pressure, Maximum Operating Pressure | 200 psi |
| Maximum Operating Temperature | 250 Degrees F |
| Minimum Operating Temperature | 0 Degrees F |
| O-Ring Material | EPDM |
| Pipe Size - Pipe Fitting, Tube Size | 1 1/4 in x 1 1/4 in |
| Standards | ABS Type Approval, ANSI/CAN/UL 213 (1/2" to 3" only), ASME B31.1, B31.3, B31.9, BV (Bureau Veritas), CRN 13492.5 A/B/C, DNV-GL, FM Class 1920 (1/2" to 2" only), IAPMO PS117, ICC-ES LC1002, Lloyd's Register, NFPA 13, 13D, 13R, NSF/ANSI 372, NSF/ANSI 61 |
| Temp. Range | 0 Degrees to 250 Degrees F |
