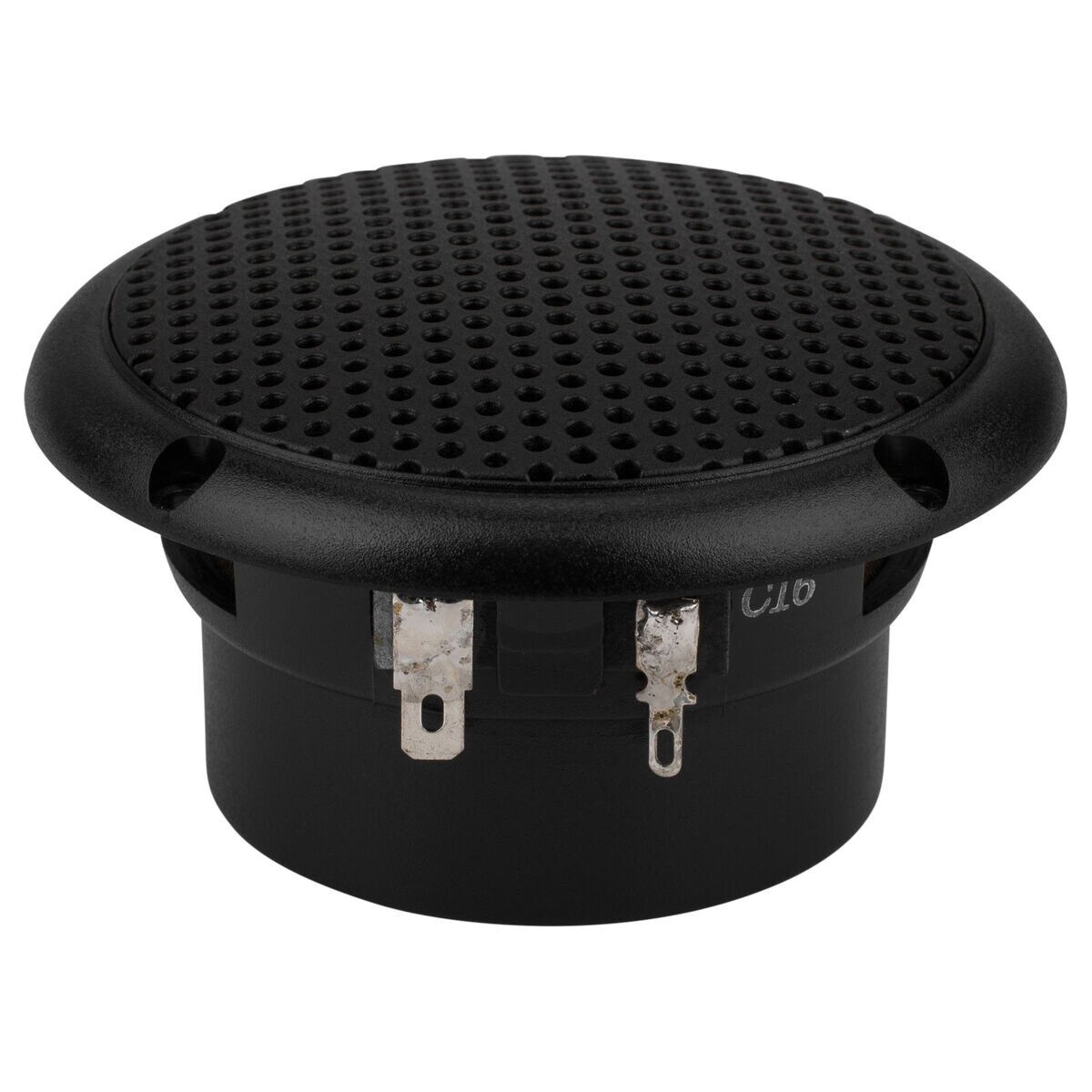

Visaton FR8WP 3.3" Full-Range Driver 8 Ohm Black. Part Number: 292-624 by Visaton.
Attributes
| Key | Value |
|---|---|
| # Mounting Holes | 4 |
| Baffle Cutout Diameter | 2.87" |
| Basket / Frame Material | Polymer |
| Bolt Circle Diameter | 3.25 |
| Brand | Visaton |
| Cone Material | Poly |
| DC Resistance (Re) | 7.8? |
| Depth | 1.5" |
| Frequency Response | 100 to 20,000Hz |
| Impedance | 8? |
| Magnet Material | Ferrite |
| Maximum Linear Excursion (Xmax) | 3mm |
| Model | FR 8 WP - 8 |
| Nominal Diameter | 3" |
| Overall Outside Diameter | 3.5" |
| Part Number | 292-624 |
| Power Handling (MAX) | 25 Watts |
| Power Handling (RMS) | 15 Watts |
| Resonant Frequency (Fs) | 158Hz |
| Sensitivity | 84dB 2.83V/1m |
| Surround Material | Rubber |
| Unit of Measure | Each |
| Voice Coil Diameter | 0.75" |
| Weight | 0.55 |
