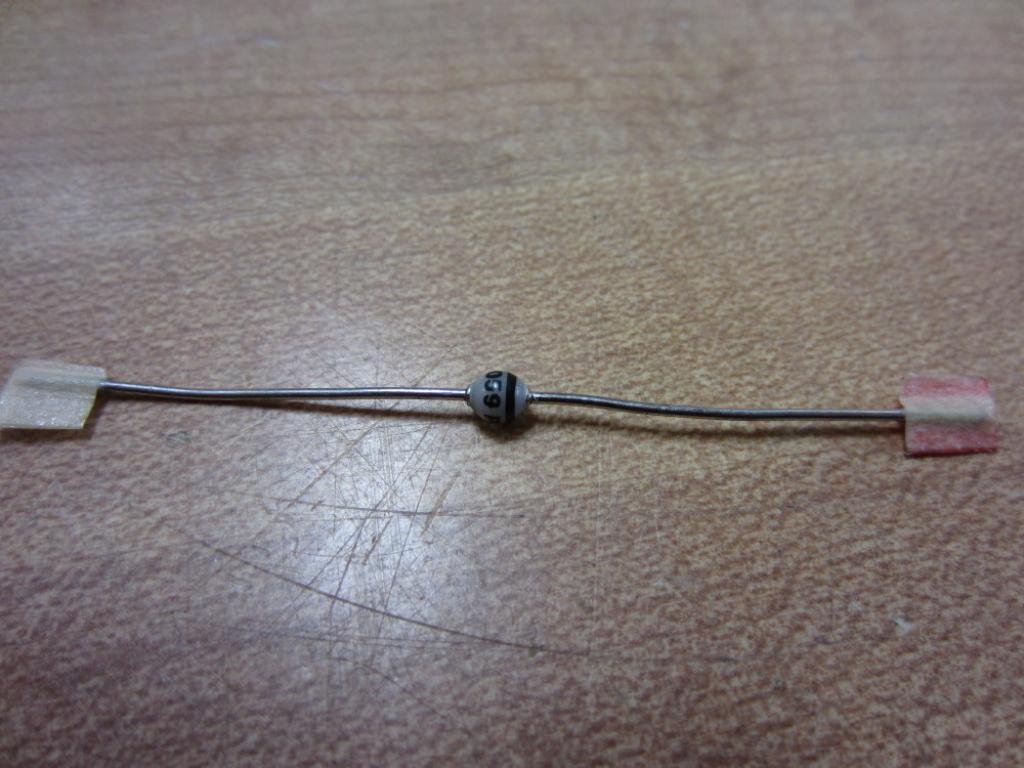

1N5059TR, Rectifier Diode Switching 200V 2A 4000ns 2-Pin SOD-57 T/R (250 Items)

Attributes

Key Value
Alternate Part No.78-1N5059-TR
Base Product Number1N5059
BrandVishay Semiconductors
Capacitance @ Vr, F40pF @ 0V, 1MHz
CategoryDiscrete Semiconductor .
ConfigurationSingle
Current - Average Recti.2A
Current - Reverse Leaka.1 ?A @ 200 V
Diode TypeAvalanche
Forward Continuous Curr.2 A
Forward Voltage Drop1.15 V at 2.5 A
ManufacturerVishay
Manufacturer Part No.1N5059TR
Max Surge Current50 A
Maximum Operating Tempe.+ 175 C
MfrVishay General Semicond.
Minimum Operating Tempe.- 55 C
Mounting StyleThrough Hole
Mounting TypeThrough Hole
Operating Temperature -.-55?C ~ 175?C
PackageTape & Reel (TR)
Package / CaseSOD-57, Axial
Package/CaseSOD-57
PackagingReel
ProductStandard Recovery Recti.
Product CategoryRectifiers
Product StatusActive
Recovery Time4000 ns
Reverse Current IR1 uA
Reverse Recovery Time (.4 ?s
Reverse Voltage200 V
Series-
SpeedStandard Recovery >500n.
Supplier Device PackageSOD-57
Voltage - DC Reverse (V.200 V
Voltage - Forward (Vf) .1.15 V @ 2.5 A

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNewark33C28200.147122817VISHAY0.147 @ 250
Mouser78-1N5059-TR0.302114986Vishay0.302 @ 250
Verical1N5059TR0.314114789Vishay0.31 @ 250
Digi-Key31043340.39181250Vishay General Semiconductor - Diodes Division0.3918 @ 250
swatee.com1N5059TR0.83115032Vishay0.83 @ 250
AmazonTPB005S3OJRY5.9912502VISHAY5.99 @ 250
thumbzoomAmazonSCB005S3OJRY11.091250Vishay11.09 @ 250
