| Brand | Vishay |
| Dimensions | Dimensions |
| Diode Configuration | Single |
| Direction Type | Direction Type |
| ESD protection | No |
| Height | Height |
| Length | 7.11mm |
| Maximum Clamping Voltage | 45.7V |
| Maximum Operating Temperature | +150 ?C |
| Maximum Peak Pulse Current | 32.8A |
| Maximum Reverse Leakage Current | Maximum Reverse Leakage Current |
| Maximum Reverse Stand-off Voltage | 28.2V |
| Minimum Breakdown Voltage | 31.4V |
| Minimum Operating Temperature | -65 ?C |
| Mounting Type | Surface Mount |
| Number of Elements per Chip | 1 |

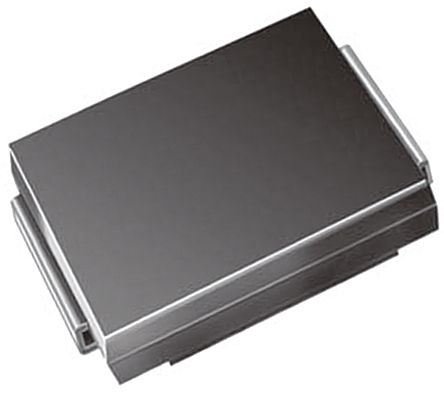

| Package Type | DO-214AB |
| Peak Pulse Power Dissipation | Peak Pulse Power Dissipation |
| Pin Count | Pin Count |
| Test Current | 1mA |
| Width | 6.22mm |
