Vishay-Dale IHLP2020ABER4R7M01

B00DWIOPPS

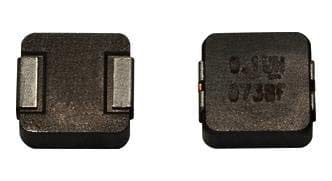

VISHAY DALE IHLP2020ABER4R7M01 INDUCTOR, SHIELDED, 4.7UH, 4.4A, SMD

VISHAY DALE IHLP2020ABER4R7M01 INDUCTOR, SHIELDED, 4.7UH, 4.4A, SMDzoom

Attributes

Key Value
Alternate Part No.70-IHLP2020ABER4R7M0
BrandVishay / Dale
Case Length5.49 mm
Case Size2020 ; 5050
Case Width5.18 mm
CategoryInductors, Coils, Chokes
Current - Saturation (I.4.4A
Current Rating2.2 A
Current Rating (Amps)2.2 A
DC Resistance (DCR)168mOhm Max
DescriptionFIXED IND 4.7UH 2.2A 16.
Detailed Description4.7 ?H Shielded Molded .
Digi-Key Part Number541-1706-2-ND - Tape & .
Frequency - Self Resona.30MHz
Height - Seated (Max)0.047" (1.20mm)
Inductance4.7 ?H, 4.7 uH, 4.7 ?H
Inductance Frequency - .100 kHz
ManufacturerVishay, Vishay Dale
Manufacturer Part No.IHLP2020ABER4R7M01
Manufacturer Product Nu.IHLP2020ABER4R7M01
Manufacturer Standard L.12 Weeks
Material - Core-
Maximum DC Current4.4 A
Maximum DC Resistance168 mOhms
MfrVishay Dale
Mounting TypeSurface Mount
Operating Temperature-55?C ~ 125?C
Operating Temperature R.- 55 C to + 125 C
PackageTape & Reel (TR)
Package / CaseNonstandard
Package/Case2020
PackagingReel
ProductHigh Current Inductors
Product CategoryFixed Inductors
Product StatusActive
Q @ Freq-
Ratings-
Resistance DC168 mOhms
SeriesIHLP-2020AB-01, IHLP Se.
ShieldingShielded
Size / Dimension0.216" L x 0.204" W (5..
Supplier Device Package-
TerminationSMD
Termination StyleSMD/SMT
Tolerance0.2, ?20%, 20 %
TypeMolded, High Current

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNewark44W91430.5400025VISHAY0.5 @ 4000
us.rs-online.com702480000.6400025Vishay Dale0.6 @ 4000
Win SourceIHLP2020ABER4R7M010.615853600Vishay0.615 @ 85
HotendaH21410280.81125Vishay/Dale0.81 @ 25
Future Electronics70265561.158400025Vishay1.158 @ 4000
thumbzoomTMEIHLP2020ABER4R7M011.18400025VISHAY1.18 @ 4000
thumbzoomDigi-Key37116441.28736121847Vishay Dale1.28736 @ 25
thumbzoomRadwellIHLP2020ABER4R7M011.77400025VISHAY1.77 @ 4000
thumbzoomswatee.comIHLP2020ABER4R7M013.0813079Vishay3.08 @ 25
