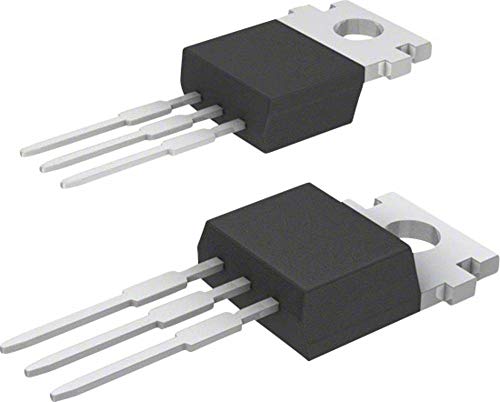

Vishay IRF9640PBF P-Channel 200Vds 11A TO-220AB Power MOSFET, New QTY-10
- Brand: Vishay
- PartNumber: IRF9640PBF
- Model: IRF9640PBF
- PackageQuantity: 1
- Binding: Electronics
- Manufacturer: Vishay
- Label: Vishay
Attributes
| Key | Value |
|---|
| Alternate Part No. | 844-IRF9640PBF |
| Base Product Number | IRF9640 |
| Brand | Vishay / Siliconix |
| Category | Discrete Semiconductor . |
| Channel Mode | Enhancement |
| Channel Type | P |
| Circuit Type | P-Channel |
| Configuration | Single |
| Current - Continuous Dr. | 11A (Tc) |
| device function | mosfet |
| device package type | to-220 |
| Dimensions | 10.51 x 4.65 x 15.49 mm |
| Drain Current | -11 A |
| Drain Current Id(rms) | 11 A |
| Drain Source Voltage Vds | 200 VDC |
| Drain to Source On Resi. | 0.5 Ohms |
| Drain to Source Voltage | -200 V |
| Drain to Source Voltage. | 200 V |
| Drive Voltage (Max Rds . | 10V |
| Fall Time | 38 ns |
| Fall Time tf | 38 ns |
| Family Series | Vishay Transistors, TO-. |
| FET Feature | - |
| FET Type | P-Channel |
| Forward Transconductance | 4.1 S |
| Forward Voltage, Diode | -5 V |
| Gate Charge (Qg) (Max) . | 44 nC @ 10 V |
| Gate Leakage Current | 0.1 ?A |
| Gate Source Voltage Vgss | 20 VDC |
| Gate to Source Voltage | +/-20 V |
| Gross Weight | 0 lbs |
| Height | 0.61" (15.49mm) |
| Id - Continuous Drain C. | 11 A |
| Input Capacitance | 1200 pF @ -25 V |
| Input Capacitance (Ciss. | 1200 pF @ 25 V |
| Item Number | IRF9640PBF |
| item per pack | 1 |
| Length | 0.413 in |
| Manufacturer | Vishay |
| Manufacturer Part No. | IRF9640PBF |
| Manufacturer Part Number | IRF9640PBF |
| Maximum Operating Tempe. | +150 ?C, + 150 C |
| Mfr | Vishay Siliconix |
| Minimum Operating Tempe. | - 55 C, -55 ?C |
| Mounting Style | Through Hole |
| Mounting Type | Through Hole |
| Net Weight | 0 lbs |
| Number of Elements per . | 1 |
| Number of Pins | 3 |
| Operating Temperature | -55?C ~ 150?C (TJ) |
| package | 50 PER TUBE |
| Package | TO-220AB, Tube |
| Package / Case | TO-220-3 |
| Package Type | TO-220AB |
| Package/Case | TO-220-3 |
| Packaging | Tube |
| Pd - Power Dissipation | 125 W |
| Polarization | P-Channel |
| Power Dissipation | 125 W |
| Power Dissipation (Max) | 125W (Tc) |
| Product Category | mosfet |
| Product Header | Hexfet? Power MOSFET |
| Product Series | to-220 |
| Product Status | Active |
| Rds On (Max) @ Id, Vgs | 500mOhm @ 6.6A, 10V |
| Rds On - Drain-Source R. | 500 mOhms |
| rDS(on) | 500 mOhm |
| Rise Time | 43 ns |
| Rise Time tr | 43 ns |
| RoHS | Yes |
| Series | IRF Series, -, IRF/SIHF. |
| Supplier Device Package | TO-220AB |
| Technology | MOSFET (Metal Oxide) |
| Temperature Operating R. | -55 to +150 ?C |
| Total Gate Charge | 44 nC |
| Transistor Polarity | P-Channel |
| Trr | 250 ns |
| Turn Off Delay Time | 39 ns |
| Turn On Delay Time | 14 ns |
| Typ. Vgs(th) | 3 VDC |
| Typical Gate Charge @ V. | Maximum of 44 nC @ -10 V |
| Typical Turn-Off Delay . | 39 ns |
| Vds - Drain-Source Brea. | - 200 V |
| Vgs (Max) | ?20V |
| Vgs - Gate-Source Break. | 20 V |
| Vgs(th) (Max) @ Id | 4V @ 250?A |
| Voltage, Breakdown, Dra. | -200 V |
| Width | 0 in |
