mpn:
brand:
manufacturer:
MPN:
Description:

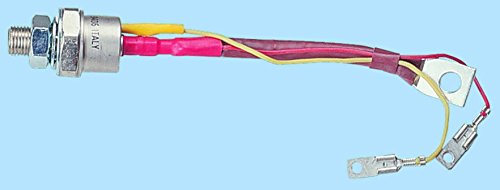

THYRISTOR PHASE CONTROL 1200 V 1600 A @ 10 MS (100% VRRM REAPPLIED) 1.6 V
Weight:
0.28
Weight:
0.0179125 LB
Preferred Price:
58.56
Price:
58.56
Min Simple Price:
32.0
Absolute Min Price:
45.44
Min Price:
45.44
Dimensions:
[7.0, 7.0, 7.0]
qty:
21
simpleSku:
TQzMDY:::VS-80RIA120PBF
sku:
TQzMDY::QM:VS-80RIA120PBF@y0
condition:
11
seller:
Galco
amzMan:
vishay pcs
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Brand, Manufacturer | Vishay |
| di/dt (A/microseconds) | 300 |
| Dimensions | 29.5 x 27 x 188mm |
| dv/dt (V/microseconds) | 500 |
| Family Series | Vishay SCRs, RIA Series |
| Gross Weight, Net Weight | 0.2866 lbs |
| I2T@50Hz (A2Sec) | 18,000 |
| I2T@60Hz (A2Sec) | 16,000 |
| Idrm Peak (mA), Irrm Peak (mA) | 0.015 mA |
| Igt (mA) | 270 mA |
| It (avg) Amps | 80 A |
| It (rms) Amps | 125 A |
| Item Number | 80RIA120PBF |
| Itsm Amps | 1,990 A |
| Junction Temperature | -40-257 ?F |
| Lead Length FMS (inches) | 6.3 " |
| Manufacturer Part Number | VS-80RIA120PBF |
| Maximum Gate Trigger Current | 120mA |
| Maximum Gate Trigger Voltage | 2.5V |
| Maximum Holding Current | 200mA |
| Maximum Operating Temperature | +125 ?C |
| Minimum Operating Temperature | -40 ?C |
| Mounting Force | 120 lbf-inches |
| Mounting Type | Thread Mount |
| Package Style, Package Type | TO-94 |
| Peak On-State Voltage | 1.6V |
| Pin Count | 3 |
| Product Series | RIA |
| Rated Average On-State Current | 80A |
| Repetitive Peak Forward Blocking Voltage, Repetitive Peak Reverse Voltage | 1200V |
| Repetitive Peak Off-State Current | 15mA |
| RoHS | Yes |
| Stock | Stock |
| Stud Size | 1/2-20 UNF-2A |
| Surge Current Rating | Surge Current Rating |
| Thyristor Type | Thyristor Type |
| tq (microseconds) | 110 ?s |
| Vdrm (Volts), Vrrm (Volts) | 1,200 V |
| Vgt (Volts) | 3.5 V |
| Vtm (Volts) | 1.6 V |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | Galco | 80RIA120PBF-VISH | 32.0 | 32.0 | 1 | In Stock | Vishay | 0.2866 | 32.0 @ Qty: 1+ | |
| Hotenda | H2034066 | 36.29 | 36.29 | 1 | 18 | Vishay Semiconductor/Diodes Division | 36.29 @ Qty: 1+ | |||
 | Newark | 55M2603 | 37.8 | 400.68 | 25 | In Stock | VISHAY | 37.8 @ Qty: 25+ | ||
 | RS Delivers | 169-5883 | 44.28 | 469.368 | 25 | In Stock | Vishay | 44.28 @ Qty: 25+ |
