Vishay IRFP460BPBF

B08QJGYB6D

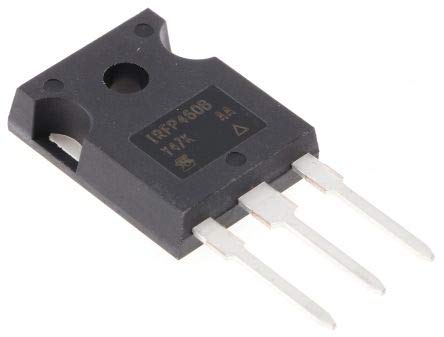

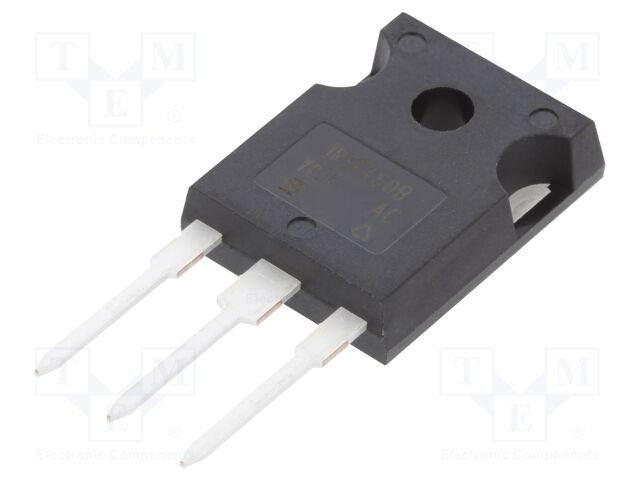

IRFP460BPBF, Trans MOSFET N-CH 500V 20A 3-Pin(3+Tab) TO-247AC (25 Items)

IRFP460BPBF, Trans MOSFET N-CH 500V 20A 3-Pin(3+Tab) TO-247AC (25 Items)zoom

Attributes

Key Value
Base Product NumberIRFP460
CaseTO247AC
CategoryDiscrete Semiconductor .
Circuit TypeN-Channel
Current - Continuous Dr.20A (Tc)
Drain current13A
Drain Current Id(rms)20 A
Drain Source Voltage Vds500 VDC
Drain to Source Voltage.500 V
Drain-source voltage500V
Drive Voltage (Max Rds .10V
Fall Time tf56 ns
Family SeriesVishay Transistors, TO-.
FET Feature-
FET TypeN-Channel
Gate charge170nC
Gate Charge (Qg) (Max) .170 nC @ 10 V
Gate Leakage Current0.1 ?A
Gate Source Voltage Vgss20 VDC
Gate-source voltage?20V
Gross Weight0 lbs
Input Capacitance (Ciss.3094 pF @ 100 V
Item NumberIRFP460BPBF
Kind of channelenhanced
Kind of packagetube
ManufacturerVISHAY
Manufacturer Part NumberIRFP460BPBF
MfrVishay Siliconix
MountingTHT
Mounting TypeThrough Hole
Net Weight0 lbs
On-state resistance0.25?
Operating Temperature-55?C ~ 150?C (TJ)
PackageTO-247AC, tube
Package / CaseTO-247-3
Part StatusActive
Polarisationunipolar
Power dissipation278W
Power Dissipation (Max)278W (Tc)
Product SeriesTO-247AC
Pulsed drain current62A
Rds On (Max) @ Id, Vgs250mOhm @ 10A, 10V
rDS(on)250 mOhm
Rise Time tr31 ns
RoHSYes
Series-
Supplier Device PackageTO-247AC
TechnologyMOSFET (Metal Oxide)
Trr437 ns
Turn Off Delay Time117 ns
Turn On Delay Time24 ns
Typ. Vgs(th)3 VDC
Type of transistorN-MOSFET
Vgs (Max)?20V
Vgs(th) (Max) @ Id4V @ 250?A

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Win SourceIRFP460BPBF1.083114407Vishay1.08 @ 31
thumbzoomNewark01AC48841.0911293VISHAY1.09 @ 25
thumbzoomGalcoIRFP460BPBF-VISH1.6450025Vishay1.64 @ 500
HotendaH18144652.72241545Vishay/Siliconix2.7224 @ 25
thumbzoomTMEIRFP460BPBF3.051602VISHAY3.05 @ 25
Digi-Key44394653.6432100025Vishay Siliconix3.6432 @ 25
RS Delivers787-91404.152125Vishay4.152 @ 25
