Description:

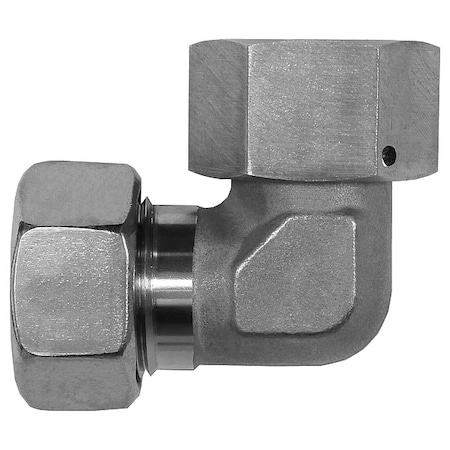

Elbow, Application Acids, Gas, Hydraulic, Fitting Side A Connection Type Compression, Fitting Side B Connection Type Female Metric Swivel, Finish/Coating Not Applicable, Fitting Material Stainless Steel, Fitting Side A Tube Outer Diameter 8 mm, Fitting Side B Tube Outer Diameter 8 mm, Material Grade 316-Ti, Maximum Operating Pressure 500 bar, Maximum Operating Temperature 1,200 Degrees F, Overall Length 29 mm, Specific Fitting Shape 90 Degrees Elbow, Fitting Side A Pipe Size 8 mm
Attributes
| Key ^ | Value |
|---|---|
| Application | Acids, Gas, Hydraulic |
| Compatible Fitting Brands | Parker (EO/EO2) |
| Finish/Coating | Not Applicable |
| Fitting Material | Stainless Steel |
| Fitting Side A Connection Type | Compression |
| Fitting Side A Pipe Size, Fitting Side A Tube Outer Diameter, Fitting Side B Pipe Size, Fitting Side B Tube Outer Diameter | 8 mm |
| Fitting Side B Connection Type | Female Metric Swivel |
| Item | Elbow |
| Material Grade | 316-Ti |
| Maximum Operating Pressure | 500 bar |
| Maximum Operating Temperature | 1,200 Degrees F |
| Minimum Operating Temperature | -425 Degrees F |
| Overall Length | 29 mm |
| Resistance Properties | Corrosion-Resistant, Temperature-Resistant |
| Series | Brennan DIN Metric Compression |
| Specific Fitting Shape | 90 Degrees Elbow |
| System of Measurement | Metric |
| Thread Size A, Thread Size B | M14 x 1.5 |
