Description:

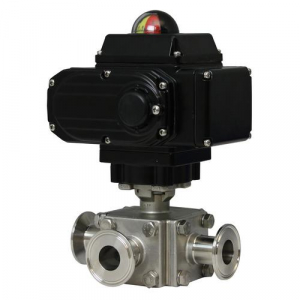

<p><strong>W.E. Anderson, WE33-CMD01, 3-Way Tri-Clamp Ball Valve, 1/2in Electric Modulating </strong> </p> <p>The Series WE33 incorporates a full port 3-way tri-clamp SS ball valve for great flow rates with minimal pressure drop. The valve features a blowout-proof stem for added safety, reinforced PTFE seats and seals for longer life, and a 316 SS (ASTM CF8M) ball for better performance. Actuators are direct mounted creating a compact assembly for tight spaces. Limit switches are able to be mounted directly to the valves allowing for remote position indication. </p>
Attributes
| Key ^ | Value |
|---|---|
| Agency Approvals | Meets the technical requirements of EU Directive 2011/65/ EU (RoHS II) |
| Body | 3-way |
| Cycle Time (per 90?) | 10 s |
| Duty Rating | 85% |
| Electrical Connection | 1/2" female NPT |
| Enclosure Rating | NEMA 4X (IP67) |
| End Connections | Tri-clamp ends |
| Housing Material | Powder coated aluminum |
| Line Sizes | 1/2 |
| Modulating Input | 4 to 20 mA |
| Other Materials | O-ring: Fluoroelastomer; Handle: 304 SS; Washer: 301 SS; Stem Nut, Locking Device, Gland Ring: 304 SS; Handle Sleeve: PVC |
| Pressure Limits | 20" Hg to 1000 psi (-0.7 to 69 bar) up to 250?F |
| Service | Compatible liquids and gases |
| Temperature Limits | -20 to 392?F (-29 to 200?C), -22 to 140?F (-30 to 60?C) |
| Wetted Materials | Body and ball: 316 SS (CF8M); Stem: 316 SS; Seat: RTFE/PTFE; Seal, Washer, and Packing: PTFE |
