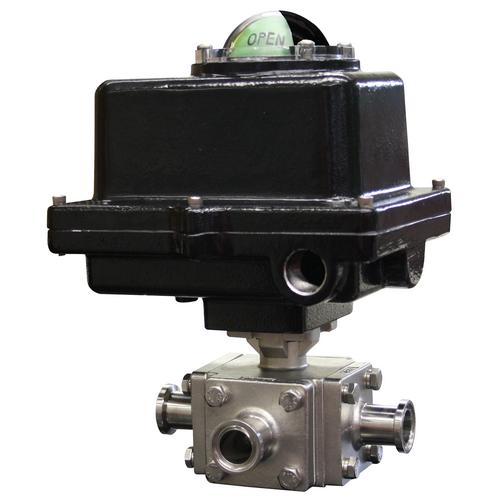

W.E. Anderson 3-Way Tri-Clamp Ball Valve, Modulating WE33-EMI02. ?$50 OFF Orders over $1499 ?. Save Now! ? (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7
Attributes
| Key ^ | Value |
|---|---|
| Agency Approvals | Meets the technical requirements of EU Directive 2011/65/ EU (RoHS II) |
| Body | 3-way |
| Cycle Time (per 90?) | 5 s |
| Duty Rating | 75% |
| Electrical Connection | 1/2" female NPT |
| Enclosure Rating | NEMA 7, designed to meet hazardous locations: Class I, Group C & D; Class II, Group E, F & G; Division I & II |
| End Connections | Tri-clamp ends |
| Housing Material | Powder coated aluminum |
| Line Sizes | 1 |
| Modulating Input | 4 to 20 mA |
| Other Materials | O-ring: Fluoroelastomer; Handle: 304 SS; Washer: 301 SS; Stem Nut, Locking Device, Gland Ring: 304 SS; Handle Sleeve: PVC |
| Pressure Limits | 20" Hg to 1000 psi (-0.7 to 69 bar) up to 250?F |
| Service | Compatible liquids and gases |
| Temperature Limits | -20 to 392?F (-29 to 200?C), -40 to 140?F (-40 to 60?C) |
| Wetted Materials | Body and ball: 316 SS (CF8M); Stem: 316 SS; Seat: RTFE/PTFE; Seal, Washer, and Packing: PTFE |
