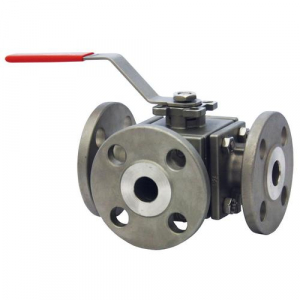

<p><strong>3-Way Flanged Stainless Steel Ball Valve, 2in Hand Operated </strong> </p> <p>The Series WE34 incorporates a full port 3-way flanged SS ball valve for great flow rates with minimal pressure drop. The valve features a blowout-proof stem for added safety, reinforced PTFE seats and seals for longer life, and a 316 SS (ASTM CF8M) ball for better performance. Actuators are direct mounted creating a compact assembly for tight spaces. Limit switches are able to be mounted directly to the valves allowing for remote position indication. </p>
Attributes
| Key ^ | Value |
|---|---|
| Agency Approvals | Meets the technical requirements of EU Directive 2011/65/ EU (RoHS II) |
| Body | 3-way |
| End Connections | 150# ANSI flange |
| Line Sizes | 2 |
| Other Materials | O-ring: Fluoroelastomer; Handle: 304 SS; Washer: 301 SS; Stem Nut, Locking Device, Gland Ring: 304 SS; Handle Sleeve: PVC |
| Pressure Limits | 28" Hg to 275 psi (-0.7 to 19 bar) up to 392?F |
| Service | Compatible liquids and gases |
| Temperature Limits | -20 to 392?F (-29 to 200?C) |
| Wetted Materials | Body and ball: 316 SS (CF8M); Stem: 316 SS; Seat: RTFE/PTFE; Seal, Washer, and Packing: PTFE |
