Walter AG F2334.B40.160.Z10.10

B00JHNVOU6

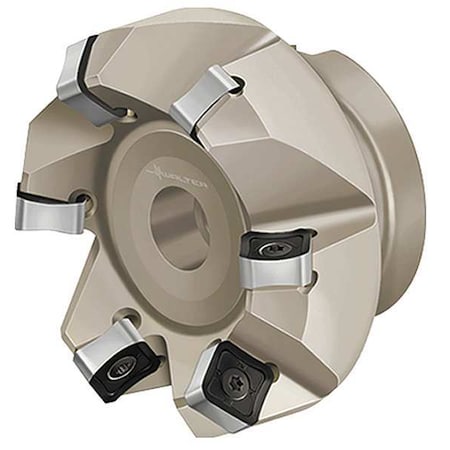

Walter AG - F2334.B40.160.Z10.10 - Indexable Face Mill, Max. Cutting Dia. 160.00mm, Arbor Dia. 40.00mm, Depth of Cut 10.00mm

Walter AG - F2334.B40.160.Z10.10 - Indexable Face Mill, Max. Cutting Dia. 160.00mm, Arbor Dia. 40.00mm, Depth of Cut 10.00mmzoom

Attributes

Key Value
ANSI CodeF2334.B40.160.Z10.10
Arbor Dia.40.00mm
Bore2.362"
Compatible HardwareFS1036 T20 Clamping Scr.
Coolant FedCoolant Through
Country of Origin (subj.China
Cutter Dia.5.512"
Cutting ApplicationCircular Interpolation .
Cutting Edge TypeCarbide
Cutting Length0.394"
Depth of Cut10.00mm
Diameter5.512"
Features4, 6 or 8 Cutting Edges.
Insert Cutting Edge Len.10.00mm
Insert Holding TypeScrew
Insert ScrewFS1459 Torx 15 IP
ISO NumberF2334.B40.160.Z10.10
ItemIndexable Face Mill
Left/Right HandRight
MaterialAll ISO
Max. Cutting Dia.160.00mm
Max. Speed9,900 RPM
NomenclatureF2334.B40.160.Z10.10
Number of Coolant Holes2
Number of Inserts10
Number of Inserts Requi.10
Overall Length63.00mm
Overall Length (In.)2.48
SeriesF2334
Shank Dia. (In.)1.575
StandardsISO 6462-C

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG79369751668.01In StockWalter20.041668.0 @ 1
thumbzoomRaptor SuppliesAD6CXW2379.4862131In StockWALTER2379.486213 @ 1
