| ANSI Code, ANSI Number, ISO Number | ROMX1204M0-D57 W3536 |
| Cast Iron (K) Compatibility, Hardened (H) Compatibility, Non Ferrous (N) Compatibility, Stainless (M) Compatibility, Steel (P) Compatibility | No |
| Chip-Breaker Code | D57 |
| Chip-Breaker Style | 10 Degrees Chipbreaker Groove |
| Chip-Breaker, Super Alloy (S) Compatibility | Yes |
| Clearance Angle | 11 Degrees |
| Coating, Coating Process | PVD |
| Corner Radius | 6.00mm |
| Country of Origin (subject to change) | Germany |
| Cutting Application | Milling |
| Cutting Direction | Right Hand |
| Cutting Edge Length | 12.00mm |
| Finish - Machining | TiAlN+Al2O3+ZrN |
| For Use With | F2334 Milling Insert |
| Grade, Manufacturer Grade | W3536 |
| Inscribed Circle | 0.4720 in |
| Insert Application | Medium |
| Insert Holding Type, Mounting Style | Screw Held |
| Insert Material, Material - Machining | Carbide |
| Insert Shape, Shape | Round |
| Insert Size | 1204M0 |
| Insert Style | ROMX |
| Insert Thickness | 0.187" |

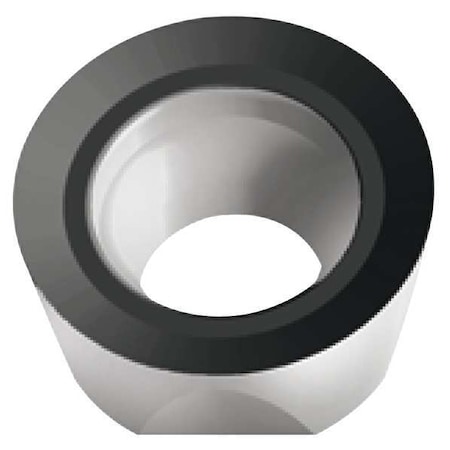

| Item | Round Milling Insert |
| Measurement System | Metric |
| Mounting Hole Dia., Through Hole Inside Dia. | 4.40mm |
| No. of Edges, Number of Cutting Edges | 4 |
| Nose Radius | 0.236" |
| Primary Material Application | Nickel, Stainless Steel, Steel, Titanium |
| Primary Material Application ISO Code | M, P, S |
| Rake | Positive |
| Thickness | 0.187 in |
| Workpiece Compatibility | Super Alloy (S) |
