| ANSI Code, ANSI Number, ISO Number | SNHX1205ANN-K88 WK10 |
| Cast Iron (K) Compatibility, Hardened (H) Compatibility, Stainless (M) Compatibility, Steel (P) Compatibility, Super Alloy (S) Compatibility | No |
| Chip-Breaker Code | K88 |
| Chip-Breaker Style | 25 Degrees Chipbreaker Groove |
| Chip-Breaker, Non Ferrous (N) Compatibility, Wiper Insert | Yes |
| Clearance Angle | 0 Degrees |
| Coating | Uncoated |
| Corner Radius | 1/32 in |
| Country of Origin (subject to change) | Germany |
| Cutting Application | Milling |
| Cutting Direction | Right Hand |
| Cutting Edge Length | 12.70mm |
| Finish - Machining | Bright (Uncoated) |
| For Toolholder | F2339.T14.016.Z02.11, F2339.T18.020.Z02.15, F2339.T22.025.Z02.20, F2339.T28.030.Z02.24, F2339.T28.032.Z02.25, F2339.T36.040.Z02.31, F2339.T45.050.Z02.40, F2339.W16.016.Z02.11, F2339.W20.020.Z02.15, F2339.W25.025.Z02.20, F2339.W32.030.Z02.24, F2339.W32.032.Z02.25, F2339.W40.040.Z02.31 |
| For Use With | F2339 Ball Nose Mill |
| Grade, Manufacturer Grade | WK10 |
| Included Angle | 90 Degrees |
| Inscribed Circle | 1/2 in |
| Insert Application | Roughing |
| Insert Holding Type, Mounting Style | Screw Held |
| Insert Material, Material - Machining | Carbide |
| Insert Shape, Shape | Square |
| Insert Size | 1205 |
| Insert Style | SNHX |
| Insert Thickness | 0.252" |

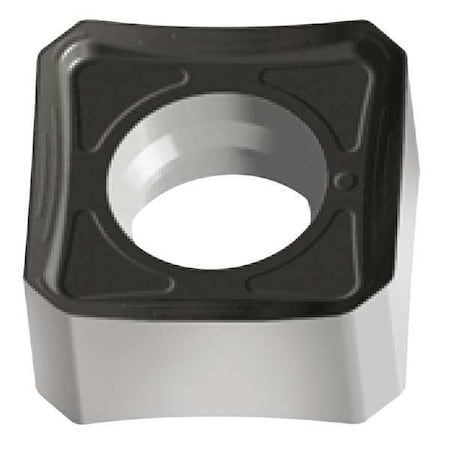

| Item | Square Milling Insert |
| Measurement System | Metric |
| No. of Edges | 8 |
| Nose Radius | 0.059" |
| Number of Cutting Edges | 4 |
| Primary Material Application | Aluminum, Brass, Bronze, Copper, Magnesium |
| Primary Material Application ISO Code | N |
| Rake | Negative |
| Thickness | 0.252 in |
| Workpiece Compatibility | Nonferrous (N) |
