| 55% Thread Drill Size | 3.50 mm |
| 65% Thread Drill Size | 3.40 mm |
| 75% Thread Drill Size | 3.30mm |
| Coolant Fed | Coolant Through |
| Country of Origin (subject to change) | Germany |
| Cutting Direction - Machining | Right Hand |
| Drill Bit Size | 3.30mm |
| Extended Neck | Yes |
| Features | For Long Chipping Materials |
| Helix Angle | 45 Degrees |

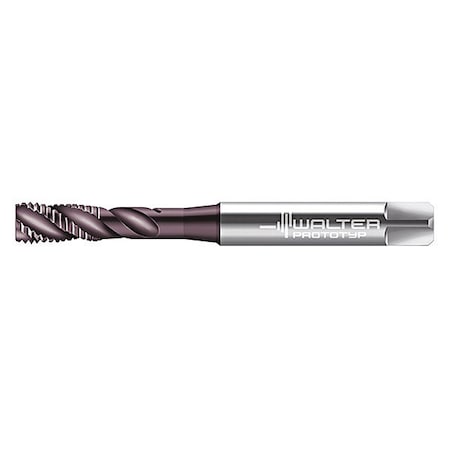

| Item | Spiral Flute Tap |
| List Number | EP2051312 |
| Measurement System | Metric |
| Number of Flutes | 3 |
| Number of Pieces | 1 |
| Overall Length | 64.60mm |
| Pitch Diameter Limit | 6HX |
| Primary Material Application | Aluminum, Brass, Bronze, Cast Iron, Copper, Stainless Steel, Steel |
| Primary Material Application ISO Code | K, M, N, P |
| Series | Paradur Eco Plus |
| Shank Dia. | 4.50mm |
| Shank Length | 48.20 mm |
| Shank Type - Machining | Straight |
| Spiral Direction | Right Hand |
| Square Size | 3.40mm |
| Standards | DIN 371 |
| Tap Chamfer | Plug |
| Tap Dimension Type | Metric |
| Tap Finish | Hard Lube |
| Tap Material | High Speed Steel |
| Tap Shank Standard | DIN 371 |
| Tap Size | M4 |
| Tap Style | Spiral Flute |
| Tap Thread Size | M4-0.70 |
| Tap Thread Type | Metric Coarse |
| Thread Direction | Right Hand |
| Thread Length | 7.00mm |
| Thread Limit | 6HX |
| Thread Limit / Class of Fit | 6HX |
| Thread Pitch | 0.70mm |
| Thread Size | M4x0.7 |
| Thread Standard | Metric Coarse |
