| 55% Thread Drill Size | 16.90 mm |
| 65% Thread Drill Size | 21/32 in |
| 75% Thread Drill Size, Drill Bit Size | 16.50mm |
| Coolant Fed | Non-Coolant Through |
| Country of Origin (subject to change) | Germany |
| Cutting Direction - Machining, Spiral Direction, Thread Direction | Right Hand |
| Extended Neck | Yes |
| Features | For Long Chipping Materials |
| Helix Angle | 45 Degrees |

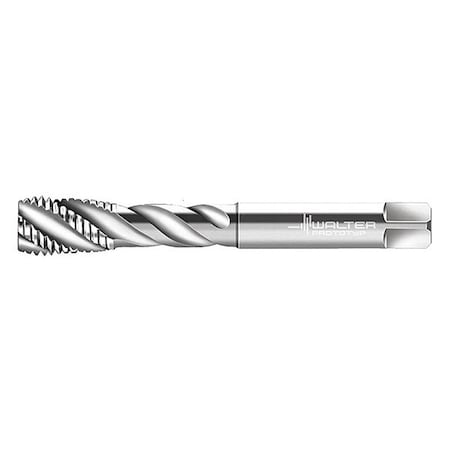

| Item | Spiral Flute Tap |
| List Number | P21569 |
| Measurement System, Tap Dimension Type | Metric |
| Number of Flutes | 4 |
| Number of Pieces | 1 |
| Overall Length | 110.00mm |
| Pitch Diameter Limit, Thread Limit, Thread Limit / Class of Fit | 6H |
| Primary Material Application | Steel |
| Primary Material Application ISO Code | P |
| Secondary Material Application | Aluminum, Brass, Bronze, Composite, Copper |
| Secondary Material Application ISO Code | N, O |
| Series | Paradur X.Pert P |
| Shank Dia. | 14.00mm |
| Shank Length | 44.00 mm |
| Shank Type - Machining | Straight |
| Square Size | 11.00mm |
| Standards, Tap Shank Standard | DIN 374 |
| Tap Chamfer | Plug |
| Tap Finish | Uncoated |
| Tap Material | High Speed Steel |
| Tap Size | M18 |
| Tap Style | Spiral Flute |
| Tap Thread Size | M18-1.50 |
| Tap Thread Type, Thread Standard | Metric Fine |
| Thread Length | 17.00mm |
| Thread Pitch | 1.50mm |
| Thread Size | M18x1.5 |
