| 55% Thread Drill Size | #12 |
| 65% Thread Drill Size | #13 |
| 75% Thread Drill Size | 4.60mm |
| Class of Fit | 2B |
| Coolant Fed | Non-Coolant Through |
| Country of Origin (subject to change) | Germany |
| Cutting Direction - Machining | Right Hand |
| Drill Bit Size | 0.1810 in |
| Extended Neck | Yes |
| Features | For Long Chipping Materials |
| Helix Angle | 45 Degrees |

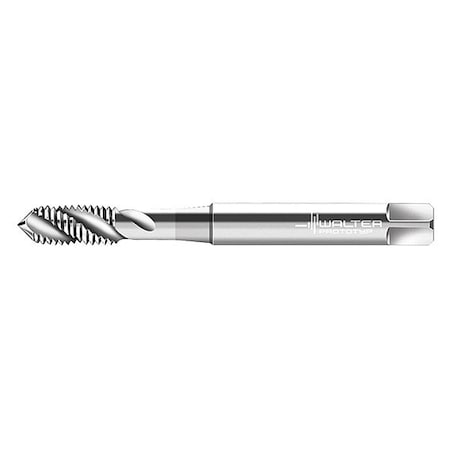

| Item | Spiral Flute Tap |
| List Number | P23519 |
| Measurement System | Pipe |
| Number of Flutes | 3 |
| Number of Pieces | 1 |
| Overall Length | 3-1/4" |
| Pitch Diameter Limit | 2B |
| Primary Material Application | Steel |
| Primary Material Application ISO Code | P |
| Secondary Material Application | Aluminum, Brass, Bronze, Composite, Copper |
| Secondary Material Application ISO Code | N, O |
| Series | Paradur X?pert P |
| Shank Dia. | 1/4" |
| Shank Length | 50.00 mm |
| Shank Type - Machining | Straight |
| Spiral Direction | Right Hand |
| Square Size | 4.90mm |
| Standards | DIN 2184-1 |
| Tap Chamfer | Plug |
| Tap Dimension Type | Inch |
| Tap Finish | Uncoated |
| Tap Material | High Speed Steel |
| Tap Shank Standard | DIN 2184-1 |
| Tap Size | #12 |
| Tap Style | Spiral Flute |
| Tap Thread Size | #12-28 |
| Tap Thread Type | UNF |
| Thread Direction | Right Hand |
| Thread Length | 3/8" |
| Thread Limit | H3, H4 |
| Thread Limit / Class of Fit | H3 / 2B, H4 / 2B |
| Thread Size | #12-28 |
| Thread Standard | UNF |
| Threads per Inch | 28 |
