| Application | For Cast Iron, Steel |
| Coolant Fed | Non-Coolant Through |
| Coolant Through, Sheeter Drill | No |
| Country of Origin (subject to change) | France |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.1181 |
| Depth x Dia. Ratio, Depth:Dia. Ratio | 8xD |
| Drill Bit Dimension Type, Measurement System | Metric |
| Drill Bit Finish, Finish - Machining | TiN |
| Drill Bit Material | Cobalt |
| Drill Bit Point Angle | 118 Degrees |
| Drill Bit Point Type | Conical Point |
| Drill Bit Size | 3.00 mm |
| Drill Diameter Tolerance | H8 |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.841mm |
| Drilling Depth | 28.00mm |
| Flute Length | 33.00 mm |
| Flute Type | Spiral |
| Grade, Material Grade - Machining | General Purpose |

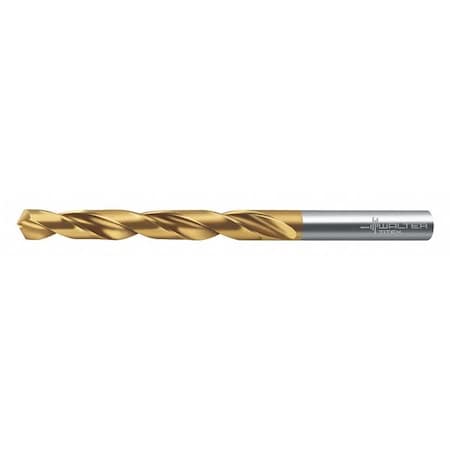

| Item | Jobber Length Drill Bit |
| List Number | A1211TIN |
| Material, Material - Machining | High Speed Steel |
| Maximum Drilling Depth | 33 mm |
| Number of Flutes | 2 |
| Number of Pieces | 1 |
| Overall Length | 61.00 mm |
| Point Type | Conical |
| Primary Material Application | Cast Iron, Steel |
| Primary Material Application ISO Code | K, P |
| Secondary Material Application | Aluminum, Brass, Bronze, Composite, Copper, Nickel, Stainless Steel, Titanium |
| Secondary Material Application ISO Code | M, N, O, S |
| Series | N |
| Shank Dia. | 2.80 mm |
| Shank Length | 28.00 mm |
| Shank Type, Shank Type - Machining | Straight |
| Standards | DIN 338 |
