Attributes
| Key ^ | Value |
|---|---|
| Application | For General Drilling, General Mechanical Engineering |
| Catalog Page | N/A |
| Coolant Fed | Non-Coolant Through |
| Coolant Through, Sheeter Drill | No |
| Country of Origin, Country of Origin (subject to change) | France |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.166, 0.1660 |
| Depth x Dia. Ratio, Depth:Dia. Ratio | 8xD |
| Drill Bit Dimension Type, Measurement System | Wire |
| Drill Bit Finish | Uncoated |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material, Material - Machining | High Speed Steel |
| Drill Bit Point Angle | 130 ?, 130 Degrees |
| Drill Bit Point Type | Conical Point |
| Drill Bit Size | #19 |
| Drill Diameter Tolerance | H8 |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.983mm |
| Drilling Depth | 36.00mm |
| Finish - Machining | Bright (Uncoated) |
| Flute Length | 43.00 mm |
| Flute Type | Spiral |
| Grade, Material Grade - Machining | M35 |

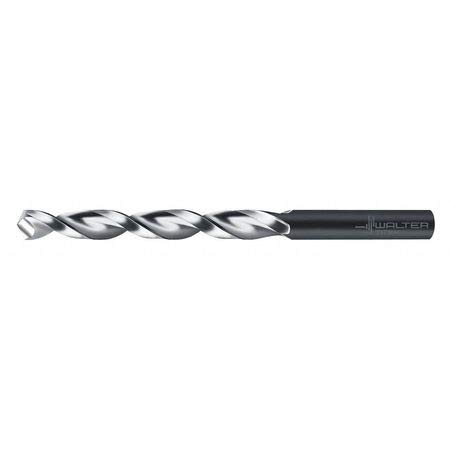

| Item | Jobber Length Drill Bit |
| Item? | 442T31 |
| List Number | A1247 |
| Maximum Drilling Depth | 43 mm |
| Mfr. Model? | A1247-NO19 |
| Number of Flutes | 2 |
| Number of Pieces | 1 |
| Overall Length | 75.00 mm |
| Point Type | Conical |
| Primary Material Application | Aluminum, Brass, Bronze, Cast Iron, Copper, Nickel, Stainless Steel, Steel, Titanium, Aluminum; Brass; Bronze; Cast Iron; Copper; Nickel; Stainless Steel; Steel; Titanium |
| Primary Material Application ISO Code | K, M, N, P, S, K; M; N; P; S |
| Secondary Material Application | Composite |
| Secondary Material Application ISO Code | O |
| Series | Alpha X-E |
| Shank Dia. | 4.22 mm |
| Shank Length | 32.00 mm |
| Shank Type, Shank Type - Machining | Straight |
| Standards | DIN 338 |
| UNSPSC | 27112801 |
