Walter Tools A3387-5.5

mpnA3387-5.5
brandname: Walter Titex
manufacturername: Walter Titex

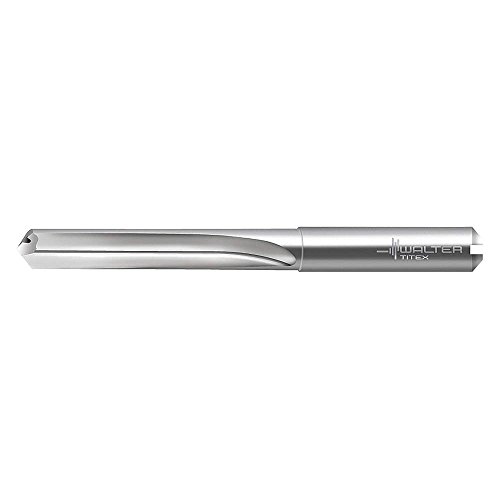

Walter Tools A3387-5.5 Alpha Jet 5.5 mm Solid Carbide Coolant Through Drill, Straight Flute, 26 mm Length of Cut, 27.5 mm Maximum Cut Depth, 44 mm Extension Length, 82 mm Overall Length

Walter Tools A3387-5.5 Alpha Jet 5.5 mm Solid Carbide Coolant Through Drill, Straight Flute, 26 mm Length of Cut, 27.5 mm Maximum Cut Depth, 44 mm Extension Length, 82 mm Overall Length

zoom

Brand: Walter Tools
PartNumber: A3387-5.5
Model: 5092984
PackageQuantity: 1
Binding: Misc.
Manufacturer: Walter
Label: Walter

Attributes

Key	Value
Aircraft Drill	No
Application	Cast Iron, High Tempera.
Coolant Fed	Coolant Through
Country of Origin (subj.	Germany
Cutting Direction	Right Hand
Decimal Equivalent	0.2165
Depth:Dia. Ratio	5xD
Drill Bit Dimension Type	Metric
Drill Bit Finish	Uncoated
Drill Bit Grouping	Drill Bit
Drill Bit Material	Solid Carbide
Drill Bit Point Angle	120 Degrees
Drill Bit Point Type	Web Thinned
Drill Bit Size	5.50 mm
Drill Diameter Tolerance	K6
Drill Length Class	Jobber Length
Drill Point (Deg.)	120
Drill Point Length	1.59 mm
Finish	Uncoated
Finish - Machining	Bright (Uncoated)
Flute Type	Straight
Grade	K20F
Helix Angle	0 Degrees
Item	Straight Flute Drill Bit
List Number	A3387
Material	Solid Carbide
Material - Machining	Carbide
Material Grade - Machin.	K20F
Measurement System	Metric
Metric Size	5.500
Number of Coolant Holes	2
Number of Flutes	2
Number of Pieces	1
Overall Length	82.00 mm
Point Type	Self-Centering Point
Primary Material Applic.	Aluminum, Brass, Bronze.
Primary Material Applic.	K, N, O
Series	AlphaJet
Shank Dia.	6.00 mm
Shank Length	36.00mm
Shank Type - Machining	Straight
Sheeter Drill	No
Standards	DIN 6537 L
Type	High Precision

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G6093674	95.0	1	In Stock	10	Walter Titex	0.04	95.0 @ 1
	Grainger	29FK92	182.5	1	In Stock	7	WALTER TITEX		182.5 @ 1
