| Application | For Drilling Cast Iron, Non Ferrous, Steel |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Country of Origin (subject to change) | France |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.5709 |
| Depth x Dia. Ratio | 12xD |
| Depth:Dia. Ratio | 12xD |
| Drill Bit Dimension Type | Metric |
| Drill Bit Finish | Uncoated |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 130 Degrees |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Size | 14.50 mm |
| Drill Diameter Tolerance | H8 |
| Finish - Machining | Bright (Uncoated) |
| Flute Length | 5 25/32 in |
| Flute Type | Parabolic |
| Grade | General Purpose |

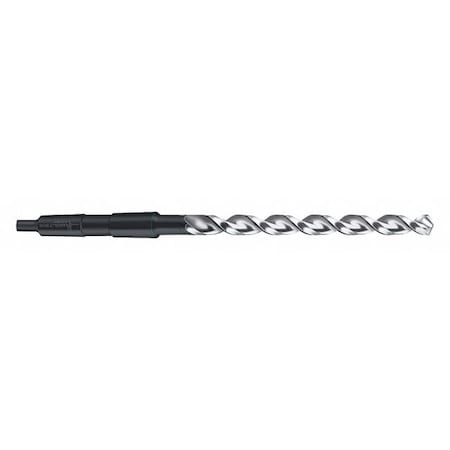

| Item | Taper Shank Drill Bit |
| List Number | A4422 |
| Material - Machining | High Speed Steel |
| Material Grade - Machining | General Purpose |
| Maximum Drilling Depth | 5 25/32 in |
| Measurement System | Metric |
| Morse Taper | #2 |
| Number of Flutes | 2 |
| Overall Length | 245.00 mm |
| Point Type | Conventional Point |
| Primary Material Application | Aluminum, Brass, Bronze, Cast Iron, Copper, Steel |
| Primary Material Application ISO Code | K, N, P |
| Secondary Material Application | Composite, Nickel, Stainless Steel, Titanium |
| Secondary Material Application ISO Code | M, O, S |
| Series | UFL |
| Shank Type | Taper |
| Shank Type - Machining | Taper |
| Standards | DIN 341 |
| Taper Shank Size | MT2 |
