Attributes
| Key ^ | Value |
|---|---|
| Aircraft Drill, Circuit Board Drill, Coolant Through | No |
| Coolant Fed | Non-Coolant Through |
| Country of Origin (subject to change) | France |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.0087 |
| Depth x Dia. Ratio, Depth:Dia. Ratio | 5xD |
| Drill Bit Dimension Type, Measurement System | Wire |
| Drill Bit Finish | Uncoated |
| Drill Bit Material | Solid Carbide |
| Drill Bit Point Angle | 140 Degrees |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Size | #89 |
| Drill Diameter Tolerance | +0.000mm/-0.004mm |
| Drill Length Class | Micro Length |
| Finish - Machining | Bright (Uncoated) |
| Flute Length | 1/32 in |
| Flute Type | Spiral |
| Grade, Material Grade - Machining | K30F |

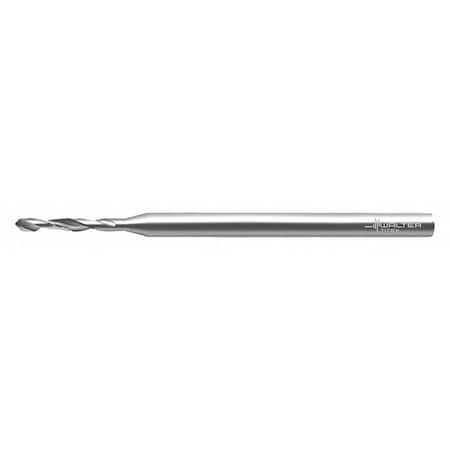

| Item | Micro Drill Bit |
| List Number | DB130-05-U0 |
| Manufacturer Series | P600 |
| Material - Machining | Carbide |
| Maximum Drilling Depth | 0.0590 in |
| Number of Flutes | 2 |
| Number of Pieces | 1 |
| Overall Length | 25.00 mm |
| Point Type | Conventional |
| Primary Material Application | Aluminum, Brass, Bronze, Cast Iron, Composite, Copper, Nickel, Stainless Steel, Steel, Titanium |
| Primary Material Application ISO Code | K, M, N, O, P, S |
| Series | Advance |
| Shank Dia. | 1.00 mm |
| Shank Length | 23.50 mm |
| Shank Type | Round |
| Shank Type - Machining | Straight |
| Standards | DIN 1899 |
