Attributes
| Key ^ | Value |
|---|---|
| Aircraft Drill, Circuit Board Drill, Coolant Through | No |
| Coolant Fed | Non-Coolant Through |
| Country of Origin (subject to change) | France |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.0965 |
| Depth x Dia. Ratio, Depth:Dia. Ratio | 5xD |
| Drill Bit Dimension Type, Measurement System | Metric |
| Drill Bit Finish, Finish - Machining | AlCrN |
| Drill Bit Material | Solid Carbide |
| Drill Bit Point Angle | 140 Degrees |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Size | 2.45 mm |
| Drill Diameter Tolerance | M7 |
| Drill Length Class | Micro Length |
| Flute Length | 21.00 mm |
| Flute Type | Spiral |
| Grade, Material Grade - Machining | High Performance |

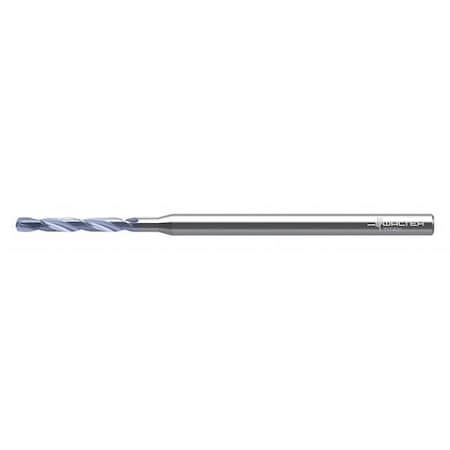

| Item | Micro Drill Bit |
| List Number | DB133-05-A0 |
| Material - Machining | Carbide |
| Maximum Drilling Depth | 17.00 mm |
| Number of Flutes | 2 |
| Number of Pieces | 1 |
| Overall Length | 59.00 mm |
| Point Type | Conventional |
| Primary Material Application | Aluminum, Brass, Bronze, Cast Iron, Copper, Steel |
| Primary Material Application ISO Code | K, N, P |
| Secondary Material Application | Composite, Graphite, Hardened Steel, Nickel, Titanium |
| Secondary Material Application ISO Code | H, O, S |
| Series | Supreme |
| Shank Dia. | 3.00 mm |
| Shank Length | 34.00 mm |
| Shank Type, Shank Type - Machining | Straight |
| Sizes Included | 0.0965" |
| Standards | TP-NORM 33M |
