Walter DC150-03-05.700A1-WJ30RE

mpnDC150-03-05.700A1-WJ30RE
brandname: WALTER TITEX
manufacturername: WALTER TITEX

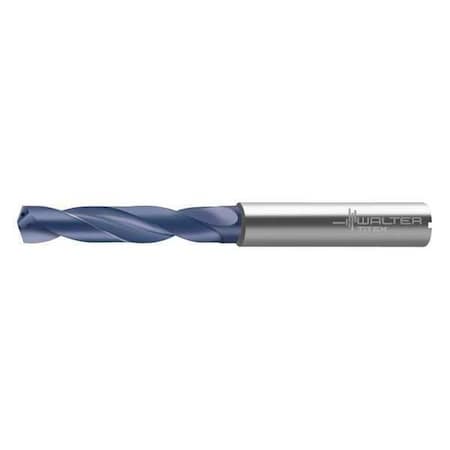

Walter Titex- DC150-03-05.700A1-WJ30RE Drill

Walter Titex- DC150-03-05.700A1-WJ30RE Drill

zoom

Brand: Walter
PartNumber: DC150-03-05.700A1-WJ30RE
Model: DC150-03-05.700A1-WJ30RE
Color: Violet/grey
PackageQuantity: 1
Binding: Misc.
Manufacturer: Titex
Label: Titex

Attributes

Key	Value
Application	For General Drilling, G.
Coolant Fed	Coolant Through
Coolant Through	Yes
Country of Origin (subj.	China
Cutting Direction	Right Hand
Decimal Equivalent	0.2244
Depth x Dia. Ratio	3xD
Depth:Dia. Ratio	3xD
Drill Bit Dimension Type	Metric
Drill Bit Finish	TiAlN
Drill Bit Grouping	Drill Bit
Drill Bit Material	Solid Carbide
Drill Bit Point Angle	140 Degrees
Drill Bit Point Type	Split point
Drill Bit Size	5.70 mm
Drill Diameter Tolerance	M7
Drill Length Class	Jobber Length
Drill Point Length	1.04mm
Drilling Depth	20.00mm
Finish - Machining	TiAlN
Flute Length	28.00 mm
Flute Type	Spiral
Grade	WJ30RE
Item	Jobber Length Drill Bit
List Number	DC150-03
Material - Machining	Carbide
Material Grade - Machin.	WJ30RE
Maximum Drilling Depth	20 mm
Measurement System	Metric
Number of Coolant Holes	2
Number of Flutes	2
Overall Length	66.00 mm
Point Type	Split point
Primary Material Applic.	Aluminum, Brass, Bronze.
Primary Material Applic.	K, N, P, S
Secondary Material Appl.	Composite, Hardened Ste.
Secondary Material Appl.	H, M, O
Series	Perform
Shank Dia.	6.00 mm
Shank Length	36 mm
Shank Type	Straight
Shank Type - Machining	Straight
Sheeter Drill	No
Standards	DIN 6537 K
