Attributes
| Key ^ | Value |
|---|---|
| Application | For General Drilling, General Mechanical Engineering |
| Coolant Fed | Coolant Through |
| Coolant Through | Yes |
| Country of Origin (subject to change) | China |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.2441 |
| Depth x Dia. Ratio, Depth:Dia. Ratio | 8xD |
| Drill Bit Dimension Type, Measurement System | Metric |
| Drill Bit Finish, Finish - Machining | TiAlN |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | Solid Carbide |
| Drill Bit Point Angle | 140 Degrees |
| Drill Bit Point Type, Point Type | Split point |
| Drill Bit Size | 6.20 mm |
| Drill Diameter Tolerance | M7 |
| Drill Length Class | Taper Length |
| Drill Point Length | 1.13 mm |
| Flute Length | 66.00 mm |
| Flute Type | Spiral |
| Grade, Material Grade - Machining | WJ30TA |

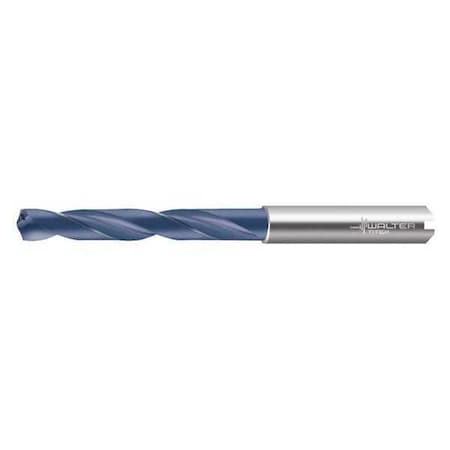

| Item | Taper Length Drill Bit |
| List Number | DC150-08 |
| Material - Machining | Carbide |
| Maximum Drilling Depth | 55.00 mm |
| Number of Coolant Holes, Number of Flutes | 2 |
| Overall Length | 106.00 mm |
| Primary Material Application | Aluminum, Brass, Bronze, Cast Iron, Copper, Nickel, Steel, Titanium |
| Primary Material Application ISO Code | K, N, P, S |
| Secondary Material Application | Composite, Hardened Steel, Stainless Steel |
| Secondary Material Application ISO Code | H, M, O |
| Series | Perform |
| Shank Dia. | 8.00 mm |
| Shank Length | 36.00 mm |
| Shank Type, Shank Type - Machining | Straight |
| Sheeter Drill | No |
| Sizes Included | 6.20mm |
| Standards | TP-NORM 64 |
