brand:
manufacturer:
Weight:
0.0025
Weight:
0.0025 LB
Preferred Price:
368.51
Price:
368.51
Min Simple Price:
104.1
Absolute Min Price:
295.64
Min Price:
295.64
Dimensions:
[2.0, 1.0, 1.0]
qty:
1
simpleSku:
DA5NTI:::CCGT060204FS-M1 WDN10
sku:
DA5NTI::VF:CCGT060204FS-M1 WDN10@x2
condition:
11
seller:
Zoro
amzMan:
walter valenite
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| ANSI Code | CCGT2(1.5)1FS-M1 |
| ANSI Number | CCGT2(1.5)1FS-M1 WDN10 |
| Brand | WALTER VALENITE |
| Cast Iron (K) Compatibility, Hardened (H) Compatibility, Stainless (M) Compatibility, Steel (P) Compatibility, Super Alloy (S) Compatibility | No |
| Catalog Page | N/A |
| Chip-Breaker Code | FS-M1 |
| Chip-Breaker, Non Ferrous (N) Compatibility | Yes |
| Clearance Angle | 7 Degrees, 7 ? |
| Coating | Uncoated |
| Corner Radius | 1/64 in |
| Corner Radius, No. of Edges, Number of Cutting Edges | 1 |
| Country of Origin, Country of Origin (subject to change) | Germany |
| Cutting Application | Turning |
| Cutting Direction | Neutral |
| Cutting Edge Length | 6.45mm |
| Depth of Cut | 0.10 to 2.00mm |
| For Use With | Toolholders, Boring Bars |
| Grade, Manufacturer Grade | WDN10 |
| Included Angle | 80 Degrees, 80 ? |
| Inscribed Circle | 2, 1/4 in |
| Insert Application | Finishing |
| Insert Code | CCGT21.51 |
| Insert Holding Type | 40 Degrees to 60 Degrees Countersink Hole, 40? to 60? Countersink Hole |
| Insert Material, Material | PCD |
| Insert Shape | Diamond |
| Insert Size | 21.51 |
| Insert Style | CCGT |
| Insert Thickness | 0.0940" |
| ISO Number | CCGT060204FS-M1 |

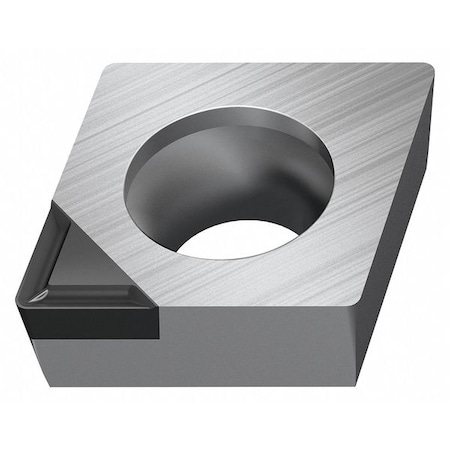

| Item | Diamond Turning Insert |
| Item? | 449W81 |
| Material - Machining | Polycrystalline Diamond |
| Measurement System | Fractional Inch |
| Mfr. Model? | CCGT060204FS-M1 WDN10 |
| Mounting Hole Dia. | 0.110" |
| Mounting Style | Screw |
| Nose Radius | 0.016" |
| Primary Material Application | Aluminum, Brass, Bronze, Copper, Magnesium, Aluminum; Brass; Bronze; Copper; Magnesium |
| Primary Material Application ISO Code | N |
| Rake | Positive |
| Relief Angle | 7 Degrees |
| Shape | Rhombic |
| Thickness | 1.5, 3/32 in |
| UNSPSC | 23171618 |
| Workpiece Compatibility | Nonferrous (N) |
