Attributes
| Key ^ | Value |
|---|---|
| ANSI Code | CCMT3(2.5)1-RK4 WKK10S |
| ANSI Number | CCMT3(2.5)1 |
| Cast Iron (K) Compatibility, Chip-Breaker, Hardened (H) Compatibility | Yes |
| Chip-Breaker Code | RK4 |
| Clearance Angle | 7 Degrees |
| Coating | CVD |
| Corner Radius | 1 |
| Country of Origin (subject to change) | Germany |
| Cutting Application | Turning |
| Cutting Direction | Neutral |
| Cutting Edge Length | 9.67mm |
| Depth of Cut | 0.40 to 3.00mm |
| Finish - Machining | TiCN+Al2O3+TiCN |
| For Use With | Toolholders, Boring Bars |
| Grade, Manufacturer Grade | WKK10S |
| Included Angle | 80 Degrees |
| Inscribed Circle | 3 |
| Insert Application | Roughing |
| Insert Code | CCMT32.51 |
| Insert Holding Type | 40 Degrees to 60 Degrees Countersink Hole |
| Insert Material, Material, Material - Machining | Carbide |
| Insert Shape | Diamond |
| Insert Size | 32.51 |
| Insert Style | CCMT |
| Insert Thickness | 0.1560" |
| ISO Number | CCMT09T304-RK4 WKK10S |

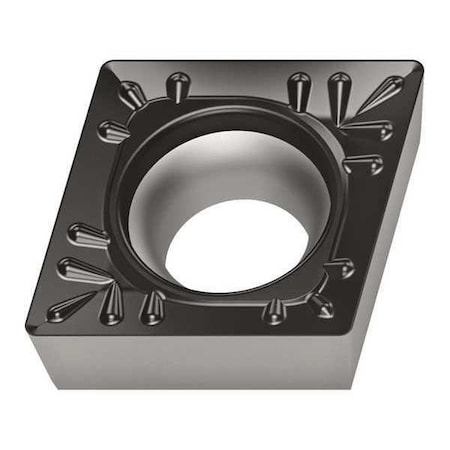

| Item | Diamond Turning Insert |
| Measurement System | Fractional Inch |
| Mounting Hole Dia. | 0.173" |
| Mounting Style | Screw |
| No. of Edges, Number of Cutting Edges | 2 |
| Non Ferrous (N) Compatibility, Stainless (M) Compatibility, Steel (P) Compatibility, Super Alloy (S) Compatibility | No |
| Nose Radius | 0.0160" |
| Primary Material Application | Cast Iron |
| Primary Material Application ISO Code | K |
| Rake | Positive |
| Relief Angle | 7 Degrees |
| Shape | Rhombic |
| Thickness | 2.5 |
| Workpiece Compatibility | Cast Iron (K), Hardened (H) |
