brand:
manufacturer:
Weight:
1.0
Weight:
1.0 LB
Preferred Price:
161.04
Price:
161.04
Min Simple Price:
88.0
Absolute Min Price:
124.96
Min Price:
124.96
Dimensions:
[5.0, 1.0, 1.0]
qty:
21
simpleSku:
zY2MzE:::CCMW09T308-2 WCB30
sku:
zY2MzE::YS:CCMW09T308-2 WCB30@y0
condition:
11
seller:
Zoro
amzMan:
walter
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| ANSI Code, ANSI Number | CCMW3(2.5)2-2 |
| Cast Iron (K) Compatibility, Non Ferrous (N) Compatibility, Stainless (M) Compatibility, Steel (P) Compatibility, Super Alloy (S) Compatibility | No |
| Chip-Breaker Code | MW |
| Chip-Breaker, Hardened (H) Compatibility, Wiper Insert | Yes |
| Clearance Angle, Relief Angle | 7 Degrees |
| Coating | Uncoated |
| Corner Radius | 1/32" |
| Country of Origin (subject to change) | Japan |
| Cutting Application | Turning |
| Cutting Direction | Neutral |
| Cutting Edge Length | 9.67mm |
| Depth of Cut | 0.10 to 0.50mm |
| For Use With | Series A10R-SCLCL 3, A10R-SCLCL 3-R, A10R-SCLCR 3, A10R-SCLCR 3-R, A12S-SCLCL 3, A12S-SCLCL 3-R, A12S-SCLCR 3, A12S-SCLCR 3-R, A16T-SCLCL 3, A16T-SCLCR 3, SCLCL 08 3, SCLCL 10 3, SCLCL 12 3B, SCLCL 16 3D, SCLCR 08 3, SCLCR 10 3, SCLCR 12 3B, SCLCR 16 3D, 570-SCLCL-20-09, 570-SCLCL |
| Grade, Manufacturer Grade | WCB30 |
| Included Angle | 80 Degrees |
| Inscribed Circle | 3/8" |
| Insert Application | Roughing |
| Insert Holding Type | 40 Degrees to 60 Degrees Countersink Hole |
| Insert Material | Carbide |
| Insert Shape | Diamond |
| Insert Size | 32.52 |
| Insert Style | CCMW |
| Insert Thickness | 0.1562" |
| ISO Number | CCMW09T308-2 |

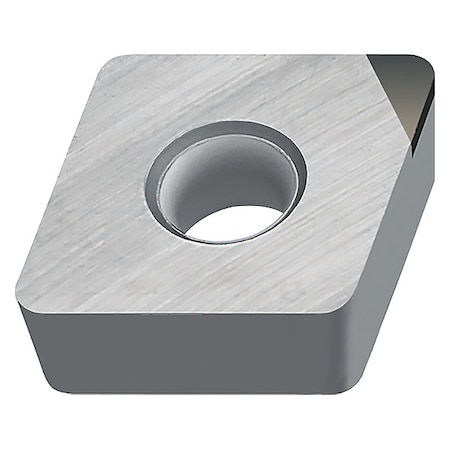

| Item | Diamond Turning Insert |
| Material - Machining | CBN |
| Measurement System | Fractional Inch |
| Mounting Style | Screw Clamp |
| No. of Edges, Number of Cutting Edges | 2 |
| Nose Radius | 0.0310" |
| Primary Material Application | Hardened Steel |
| Primary Material Application ISO Code | H |
| Rake | Positive |
| Shape | Rhombic |
| Thickness | 5/32" |
| Workpiece Compatibility | Hardened (H) |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | Zoro | G8015612 | 88.0 | 88.0 | 1 | In Stock | 7 | Walter Valenite | 88.0 @ Qty: 1+ |
