Attributes
| Key ^ | Value |
|---|---|
| ANSI Code, ANSI Number | CNMG4(3)0.5-FM5 WSM10S |
| Cast Iron (K) Compatibility, Hardened (H) Compatibility, Non Ferrous (N) Compatibility | No |
| Chip-Breaker Code | FM5 |
| Chip-Breaker, Stainless (M) Compatibility, Steel (P) Compatibility, Super Alloy (S) Compatibility | Yes |
| Clearance Angle | 0 Degrees |
| Coating | PVD |
| Corner Radius | .5 |
| Country of Origin (subject to change) | Germany |
| Cutting Application | Turning |
| Cutting Direction | Neutral |
| Cutting Edge Length | 12.90mm |
| Depth of Cut | 0.10 to 1.00mm |
| Finish - Machining | TiAlN+Al2O3+Al |
| For Use With | Toolholders, Boring Bars |
| Grade, Manufacturer Grade | WSM10S |
| Included Angle | 80 Degrees |
| Inscribed Circle, No. of Edges, Number of Cutting Edges | 4 |
| Insert Application | Finishing |
| Insert Code | CNMG43.5 |
| Insert Holding Type | Straight Hole |
| Insert Material, Material, Material - Machining | Carbide |
| Insert Shape | Diamond |
| Insert Size | 430.5 |
| Insert Style | CNMG |
| Insert Thickness | 0.1880" |
| ISO Number | CNMG120402-FM5 WSM10S |

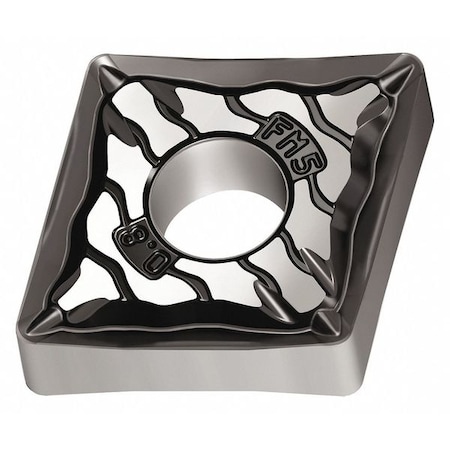

| Item | Diamond Turning Insert |
| Measurement System | Fractional Inch |
| Mounting Hole Dia. | 0.203" |
| Mounting Style | Clamp |
| Nose Radius | 0.008" |
| Primary Material Application | Nickel, Stainless Steel, Titanium |
| Primary Material Application ISO Code | M, S |
| Rake | Negative |
| Relief Angle | 0 Degrees |
| Shape | Rhombic |
| Thickness | 3 |
| Workpiece Compatibility | Stainless (M), Steel (P), Super Alloy (S) |
