| ANSI Code, ANSI Number | CNMG431-MS3 WS10 |
| Cast Iron (K) Compatibility, Hardened (H) Compatibility, Non Ferrous (N) Compatibility, Stainless (M) Compatibility, Steel (P) Compatibility | No |
| Chip-Breaker Code | MS3 |
| Chip-Breaker, Super Alloy (S) Compatibility | Yes |
| Clearance Angle | 0 Degrees |
| Coating | Uncoated |
| Corner Radius | 1 |
| Country of Origin (subject to change) | Germany |
| Cutting Application | Turning |
| Cutting Direction | Neutral |
| Cutting Edge Length | 12.90mm |
| Depth of Cut | 0.60 to 3.00mm |
| Finish - Machining | Bright (Uncoated) |
| For Use With | Toolholders, Boring Bars |
| Grade, Manufacturer Grade | WS10 |
| Included Angle | 80 Degrees |
| Inscribed Circle, No. of Edges, Number of Cutting Edges | 4 |
| Insert Application | Medium |
| Insert Code | CNMG431 |
| Insert Holding Type | Straight Hole |
| Insert Material, Material, Material - Machining | Carbide |
| Insert Shape | Diamond |
| Insert Size | 431 |
| Insert Style | CNMG |
| Insert Thickness | 0.1880" |
| ISO Number | CNMG120404-MS3 WS10 |

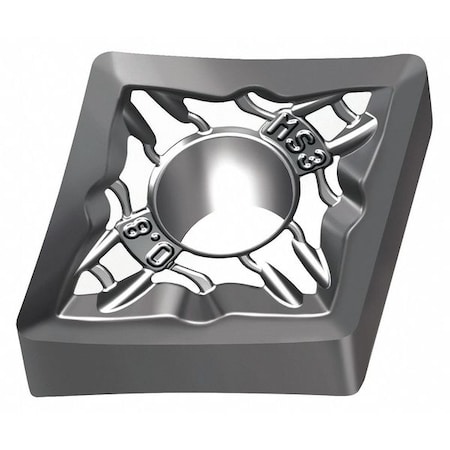

| Item | Diamond Turning Insert |
| Measurement System | Fractional Inch |
| Mounting Hole Dia. | 0.203" |
| Mounting Style | Clamp |
| Nose Radius | 0.016" |
| Primary Material Application | Nickel, Titanium |
| Primary Material Application ISO Code | S |
| Rake | Negative |
| Relief Angle | 0 Degrees |
| Shape | Rhombic |
| Thickness | 3 |
| Workpiece Compatibility | Super Alloy (S) |
