Attributes
| Key | Value |
|---|---|
| ANSI Code | CNMG432-NRS WSM20S |
| ANSI Number | CNMG432-NRS WSM20S |
| Cast Iron (K) Compatibility | No |
| Chip-Breaker | Yes |
| Chip-Breaker Code | NRS |
| Clearance Angle | 0 Degrees |
| Coating | PVD |
| Corner Radius | 2 |
| Country of Origin (subject to change) | Germany |
| Cutting Application | Turning |
| Cutting Direction | Neutral |
| Cutting Edge Length | 12.90mm |
| Depth of Cut | 1.00 to 4.00mm |
| Finish - Machining | TiAlN+Al2O3+Al |
| For Use With | Toolholders, Boring Bars |
| Grade | WSM20S |
| Hardened (H) Compatibility | No |
| Included Angle | 80 Degrees |
| Inscribed Circle | 4 |
| Insert Application | Roughing |
| Insert Code | CNMG432 |
| Insert Holding Type | Straight Hole |
| Insert Material | Carbide |
| Insert Shape | Diamond |
| Insert Size | 432 |
| Insert Style | CNMG |
| Insert Thickness | 0.1880" |
| ISO Number | CNMG120408-NRS WSM20S |

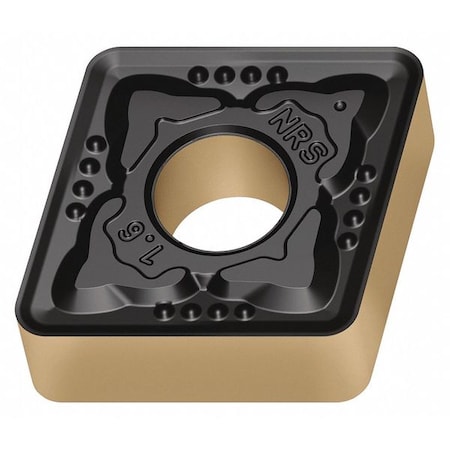

| Item | Diamond Turning Insert |
| Manufacturer Grade | WSM20S |
| Material | Carbide |
| Material - Machining | Carbide |
| Measurement System | Fractional Inch |
| Mounting Hole Dia. | 0.203" |
| Mounting Style | Clamp |
| No. of Edges | 4 |
| Non Ferrous (N) Compatibility | No |
| Nose Radius | 0.031" |
| Number of Cutting Edges | 4 |
| Primary Material Application | Nickel, Stainless Steel, Titanium |
| Primary Material Application ISO Code | M, S |
| Rake | Negative |
| Relief Angle | 0 Degrees |
| Shape | Rhombic |
| Stainless (M) Compatibility | Yes |
| Steel (P) Compatibility | Yes |
| Super Alloy (S) Compatibility | Yes |
| Thickness | 3 |
| Workpiece Compatibility | Stainless (M), Steel (P), Super Alloy (S) |
