Attributes
| Key ^ | Value |
|---|---|
| ANSI Code | CNMM543-NRF WPP30S |
| ANSI Number | CNMM543-NRF |
| Cast Iron (K) Compatibility, Hardened (H) Compatibility, Non Ferrous (N) Compatibility, Stainless (M) Compatibility, Super Alloy (S) Compatibility | No |
| Chip-Breaker Code | NRF |
| Chip-Breaker, Steel (P) Compatibility | Yes |
| Clearance Angle | 0 Degrees |
| Coating | CVD |
| Corner Radius | 3 |
| Country of Origin (subject to change) | Germany |
| Cutting Application | Turning |
| Cutting Direction | Neutral |
| Cutting Edge Length | 16.12mm |
| Depth of Cut | 1.20 to 9.00mm |
| Finish - Machining | TiCN+Al2O3+TiCN |
| For Use With | Toolholders and Boring Bars |
| Grade, Manufacturer Grade | WPP30S |
| Included Angle | 80 Degrees |
| Inscribed Circle | 5 |
| Insert Application | Roughing |
| Insert Code | CNMM543 |
| Insert Holding Type | Straight Hole |
| Insert Material, Material, Material - Machining | Carbide |
| Insert Shape | Diamond |
| Insert Size | 543 |
| Insert Style | CNMM |
| Insert Thickness | 0.250" |
| ISO Number | CNMM160612-NRF WPP30S |

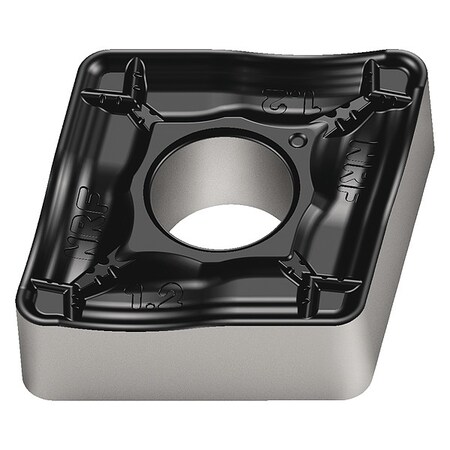

| Item | Diamond Turning Insert |
| Measurement System | Fractional Inch |
| Mounting Style | Screw Held |
| No. of Edges, Number of Cutting Edges, Thickness | 4 |
| Nose Radius | 0.047" |
| Primary Material Application | Steel |
| Primary Material Application ISO Code | P |
| Rake | Negative |
| Relief Angle | 0 Degrees |
| Shape | Rhombic |
| Workpiece Compatibility | Steel (P) |
