Attributes
| Key ^ | Value |
|---|---|
| ANSI Code | DCMT2(1.5)1-FM4 WSM20S |
| ANSI Number | DCMT3(2.5)2 |
| Cast Iron (K) Compatibility, Hardened (H) Compatibility, Non Ferrous (N) Compatibility | No |
| Chip-Breaker Code | FM4 |
| Chip-Breaker, Stainless (M) Compatibility, Steel (P) Compatibility, Super Alloy (S) Compatibility | Yes |
| Clearance Angle | 7 Degrees |
| Coating | CVD |
| Corner Radius | 1 |
| Country of Origin (subject to change) | Germany |
| Cutting Application | Turning |
| Cutting Direction | Neutral |
| Cutting Edge Length | 7.75mm |
| Depth of Cut | 0.10 to 1.50mm |
| Finish - Machining | TiAlN+Al2O3+Al |
| For Use With | Toolholders, Boring Bars |
| Grade, Manufacturer Grade | WSM20S |
| Included Angle | 55 Degrees |
| Inscribed Circle, No. of Edges, Number of Cutting Edges | 2 |
| Insert Application | Finishing |
| Insert Code | DCMT21.51 |
| Insert Holding Type | 40 Degrees to 60 Degrees Countersink Hole |
| Insert Material, Material, Material - Machining | Carbide |
| Insert Shape | Diamond |
| Insert Size | 21.51 |
| Insert Style | DCMT |
| Insert Thickness | 0.0940" |
| ISO Number | DCMT070204-FM4 WSM20S |

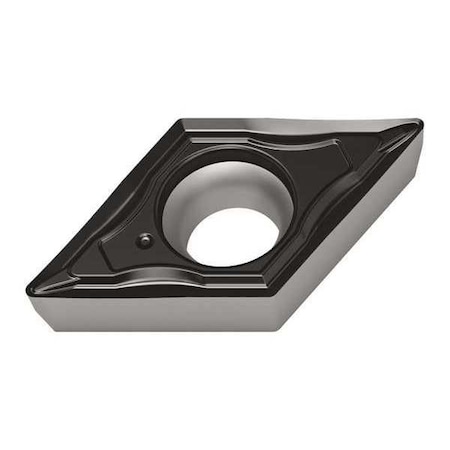

| Item | Diamond Turning Insert |
| Measurement System | Fractional Inch |
| Mounting Hole Dia. | 0.110" |
| Mounting Style | Screw |
| Nose Radius | 0.0160" |
| Primary Material Application | Nickel, Stainless Steel, Titanium |
| Primary Material Application ISO Code | M, S |
| Rake | Positive |
| Relief Angle | 7 Degrees |
| Shape | Rhombic |
| Thickness | 1.5 |
| Workpiece Compatibility | Cast Iron (K), Hardened (H) |
