Description:

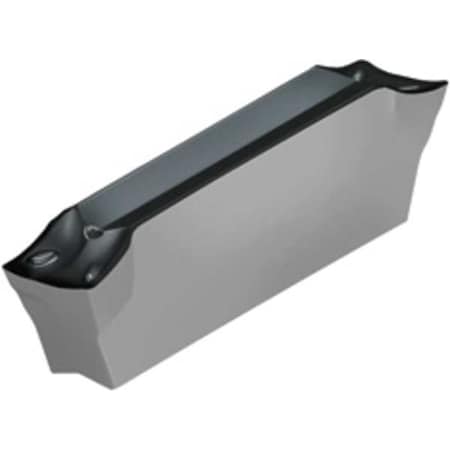

Parting and Grooving Insert, Right Hand, Max. Grooving Width 3.00mm, ANSI Code GX24-2E300R6-CF6 WSM43S, Chip-Breaker Code CF6, Clearance Angle 6 Degrees , Coating Process PVD
Attributes
| Key ^ | Value |
|---|---|
| Application | Cut Off Low Feed |
| Chip-Breaker, Stainless (M) Compatibility | Yes |
| Coating | PVD |
| Corner Radius | 0.20mm |
| Cutting Direction | Right Hand |
| Depth of Cut | 22.00mm |
| For Use With | Walter Cut Monoblock Tools and Parting Blades |
| Grade | WSM43S |
| Hardened (H) Compatibility | No |
| Insert Material | Carbide |
| Insert Seat Size, Seat Size | E |
| Insert Size | 24 |
| ISO Number | GX24-2E300R6-CF6 WSM43S |
| Item | Parting and Grooving Insert |
| Max. Grooving Width, Width | 3.00mm |
| Mounting Style | Slip In |
| Overall Length, Reference Length | 24.60mm |
| Rake | 19 Degrees |
| Style | Pressed |
| Workpiece Compatibility | Stainless (M), Steel (P), Super Alloy (S) |
