| ANSI Code | NCCI20-1625L-GX09-1 |
| ANSI Number | NCCI20-1625L-GX09-1 |
| Bar Dia. | 0.787" |
| Center to Cutting Tip | 18.00mm |
| Coolant Fed | Coolant Through |
| Country of Origin (subject to change) | United States |
| Cutting Application | Grooving |
| Cutting Direction | Left Hand |
| Cutting Edge Type | 0 Degrees |
| Cutting Location | Internal |
| Depth of Cut | 0.0790 in |
| For Use With | GX09-1 Series |
| Insert Holding Type | Clamp |
| Insert Shape | GX Grooving |
| Insert Style | GX |
| ISO Number | NCCI20-1625L-GX09-1 |

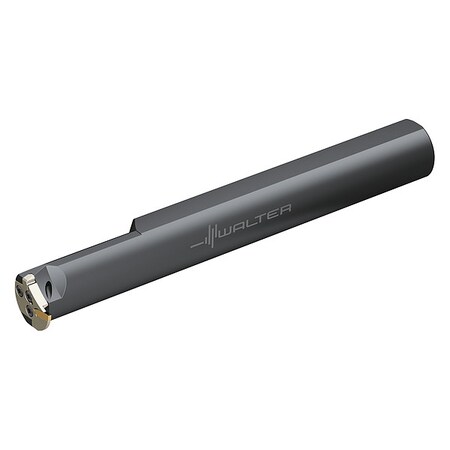

| Item | Indexable Grooving and Parting Toolholder |
| Lead Angle | 90 Degrees |
| Left/Right Hand | Left |
| Max. Grooving Width | 1.70mm |
| Min. Bore | 0.984" |
| Mounting Style | Screw Held Clamp |
| Overall Length | 8 in |
| Product Family | NOVEX-CUT Internal Positive |
| Rake | Neutral |
| Series | NCCI |
| Shank Dia. | 1 in |
| Shank Material | High Speed Steel |
| Style | 90 Degrees Internal Machining |
| Toolholder Style | NCCI |
| Type | Coolant Thru |
