Attributes
| Key ^ | Value |
|---|---|
| ANSI Code | SNGN454T02020 |
| ANSI Number | SNGN454T02020 WCK10 |
| ANSI Project - Inscribed Circle, No. of Edges, Number of Cutting Edges | 4 |
| Cast Iron (K) Compatibility, Chip-Breaker | Yes |
| Chamfer Angle | 20 Degrees |
| Chip-Breaker Code | T02020 |
| Clearance Angle | 0 Degrees |
| Coating | Uncoated |
| Corner Radius | 1/16 in |
| Country of Origin (subject to change) | Japan |
| Cutting Application | Turning |
| Cutting Direction | Neutral |
| Cutting Edge | Chamfered |
| Cutting Edge Length | 12.70mm |
| Depth of Cut | 0.10 to 5.00mm |
| For Use With | Toolholders, Boring Bars |
| Grade, Manufacturer Grade | WCK10 |
| Hardened (H) Compatibility, Non Ferrous (N) Compatibility, Stainless (M) Compatibility, Steel (P) Compatibility, Super Alloy (S) Compatibility | No |
| Included Angle | 90 Degrees |
| Inscribed Circle | 1/2 in |
| Insert Application | Roughing |
| Insert Code | SNGN454 |
| Insert Holding Type | No Screw Hole |
| Insert Material, Material, Material - Machining | Ceramic |
| Insert Shape, Shape | Square |
| Insert Size | 454 |
| Insert Style | SNGN |
| Insert Thickness | 0.3130" |
| ISO Number | SNGN120716T02020 |

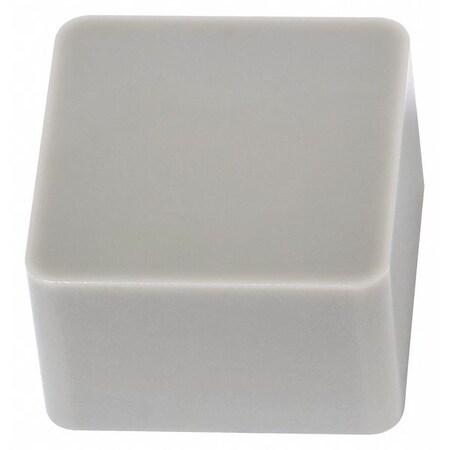

| Item | Square Turning Insert |
| Material Grade - Machining | Silicon Nitride Si3N4 |
| Measurement System | Fractional Inch |
| Mounting Hole Dia. | 0" |
| Mounting Style | Clamp |
| Nose Radius | 0.063" |
| Primary Material Application | Cast Iron |
| Primary Material Application ISO Code | K |
| Rake | Negative |
| Relief Angle | 0 Degrees |
| Thickness | 5 |
| Workpiece Compatibility | Cast Iron (K) |
