Attributes
| Key ^ | Value |
|---|---|
| ANSI Code | TCMT1.8(1.5)2-RP4 WPP20S |
| ANSI Number | TCMT1.8(1.5)2 |
| Cast Iron (K) Compatibility, Chip-Breaker, Steel (P) Compatibility | Yes |
| Chip-Breaker Code | RP4 |
| Clearance Angle | 7 Degrees |
| Coating, Coating Process | CVD |
| Corner Radius | 0.8 mm |
| Country of Origin (subject to change) | Germany |
| Cutting Application | Turning |
| Cutting Direction | Neutral |
| Cutting Edge Length | 9.62 mm |
| Depth of Cut | 0.60 mm to 3.00 mm |
| Finish - Machining | TiCN+Al2O3+TiCN |
| For Use With | Toolholders, Boring Bars |
| Grade, Manufacturer Grade | WPP20S |
| Hardened (H) Compatibility, Non Ferrous (N) Compatibility, Stainless (M) Compatibility, Super Alloy (S) Compatibility | No |
| Included Angle | 60 Degrees |
| Inscribed Circle | 7/32 in |
| Insert Application | Roughing |
| Insert Holding Type | 40 Degrees to 60 Degrees Countersink Hole |
| Insert Material, Material, Material - Machining | Carbide |
| Insert Shape, Shape | Triangle |
| Insert Size | 1.81.52 |
| Insert Style | TCMT |
| Insert Thickness | 0.0940" |
| ISO Number | TCMT090208-RP4 WPP20S |

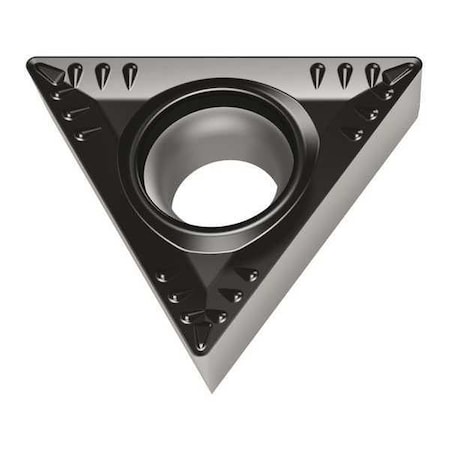

| Item | Triangle Turning Insert |
| Measurement System | Metric |
| Mounting Hole Dia. | 0.098" |
| Mounting Style | Screw |
| No. of Edges, Number of Cutting Edges | 3 |
| Nose Radius | 0.0310" |
| Primary Material Application | Steel |
| Primary Material Application ISO Code | P |
| Rake | Positive |
| Relief Angle | 7 Degrees |
| Secondary Material Application | Cast Iron |
| Secondary Material Application ISO Code | K |
| Thickness | 2.38 mm |
| Through Hole Inside Dia. | 2.5 mm |
| Workpiece Compatibility | Cast Iron (K), Steel (P) |
